Specification	STA7130MPR

Applications	General Purpose
Current - Output	1 A
Function	Control and Power Stage, Driver - Fully Integrated
Half-Bridge Count	2
Interface	Parallel
Motor Type - AC, DC	Brushed DC
Motor Type - Stepper	Unipolar
Mounting Type	Through Hole
Operating Temperature (Max)	150 °C
Operating Temperature (Min)	-20 °C
Output Configuration	Half Bridge

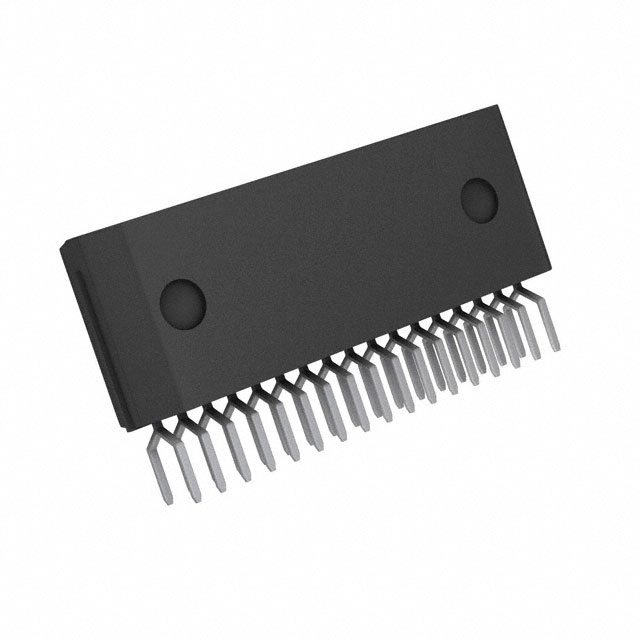

Package / Case	18-SSIP Formed Leads
Package Name	18-ZIP
Step Resolution	1/4, 1/2, 1/8, 1
Technology	Power MOSFET
Voltage - Load (Max)	44 V
Voltage - Load (Min)	10 V
Voltage - Supply (Maximum)	44 V
Voltage - Supply (Minimum)	10 VDC

STA7130 Series

Part	Function	Mounting Type	Technology	Voltage - Load (Max)	Voltage - Load (Min)	Package / Case	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Motor Type - Stepper	Interface	Package Name	Motor Type - AC, DC	Half-Bridge Count	Output Configuration	Current - Output	Operating Temperature (Max)	Operating Temperature (Min)	Step Resolution	Applications
Sanken Electric USA Inc. STA7130MPR	Control and Power Stage Driver - Fully Integrated	Through Hole	Power MOSFET	44 V	10 V	18-SSIP Formed Leads	10 VDC	44 V	Unipolar	Parallel	18-ZIP	Brushed DC	2	Half Bridge	1 A	150 °C	-20 °C	1 1/2 1/4 1/8	General Purpose
