SRN.M08.GLL.6GZ

Active

LEMO

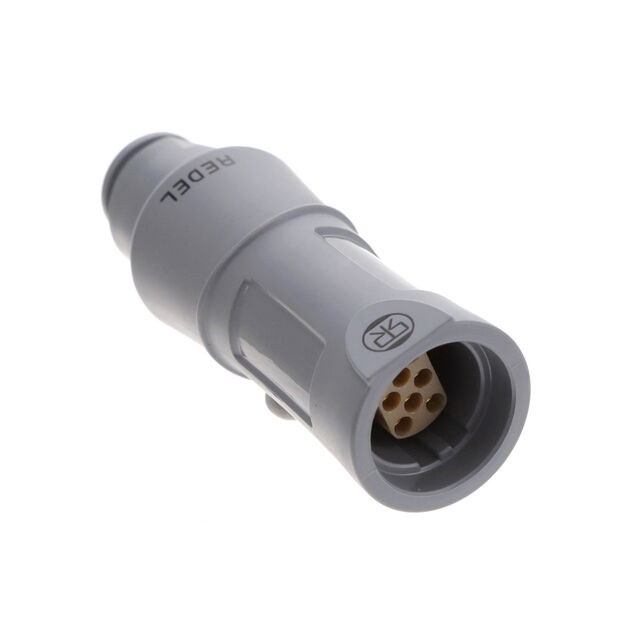

CONN RCPT FMALE 8P GOLD SLDR CUP

Search across all available documentation for this part.

Active

LEMO

CONN RCPT FMALE 8P GOLD SLDR CUP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Position Circular Connector Receptacle, Female Sockets Solder Cup

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	SRN.M08.GLL.6GZ	SRN.M0 Series

Applications	Medical, Industrial, Automotive, Testing Equipment & Measurement	Medical, Industrial, Automotive, Testing Equipment & Measurement
Backshell Material, Plating	Sulfone	Sulfone
Cable Opening	-	0.157 in
Cable Opening	-	0.205 in
Cable Opening	-	4 mm
Cable Opening	-	5.2 mm
Cable Opening [custom]	0.209 in, 0.256 in	0.209 - 0.256 in
Cable Opening [custom]	6.5 mm, 5.3 mm	5.3 - 6.5 mm
Color	Gray	Gray
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Current Rating (Amps)	5 A	5 - 11.5 A
Fastening Type	Push-Pull	Push-Pull
Features	Backshell	Backshell
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	8	4 - 8
Operating Temperature [Max]	170 °C	170 °C
Operating Temperature [Min]	-50 °C	-50 °C
Orientation	N	N
Primary Material	Plastic	Plastic
Shell Material	Sulfone	Sulfone
Shell Size - Insert	M08	M04, M08
Shielding	Unshielded	Unshielded

CONN RCPT FMALE 4P GOLD SLDR CUP

Part	Fastening Type	Shell Material	Mounting Type	Color	Cable Opening [custom]	Cable Opening [custom]	Connector Type	Ingress Protection	Features	Applications	Backshell Material, Plating	Insert Material	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Current Rating (Amps)	Primary Material	Orientation	Shell Size - Insert	Contact Finish - Mating	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]
LEMO SRN.M04.GLL.6G	Push-Pull	Sulfone	Free Hanging (In-Line)	Gray	0.209 in, 0.256 in	5.3 mm, 6.5 mm	Receptacle, Female Sockets	IP50	Backshell	Automotive, Industrial, Medical, Testing Equipment & Measurement	Sulfone	Polyetheretherketone (PEEK)	4	-50 °C	170 °C	Unshielded	11.5 A	Plastic	N	M04	Gold
LEMO SRN.M08.GLL.6GZ	Push-Pull	Sulfone	Free Hanging (In-Line)	Gray	0.209 in, 0.256 in	5.3 mm, 6.5 mm	Receptacle, Female Sockets	IP50	Backshell	Automotive, Industrial, Medical, Testing Equipment & Measurement	Sulfone	Polyetheretherketone (PEEK)	8	-50 °C	170 °C	Unshielded	5 A	Plastic	N	M08	Gold
LEMO SRN.M04.GLL.5GZ	Push-Pull	Sulfone	Free Hanging (In-Line)	Gray			Receptacle, Female Sockets	IP50	Backshell	Automotive, Industrial, Medical, Testing Equipment & Measurement	Sulfone	Polyetheretherketone (PEEK)	4	-50 °C	170 °C	Unshielded	11.5 A	Plastic	N	M04	Gold	0.157 in	0.205 in	4 mm	5.2 mm
