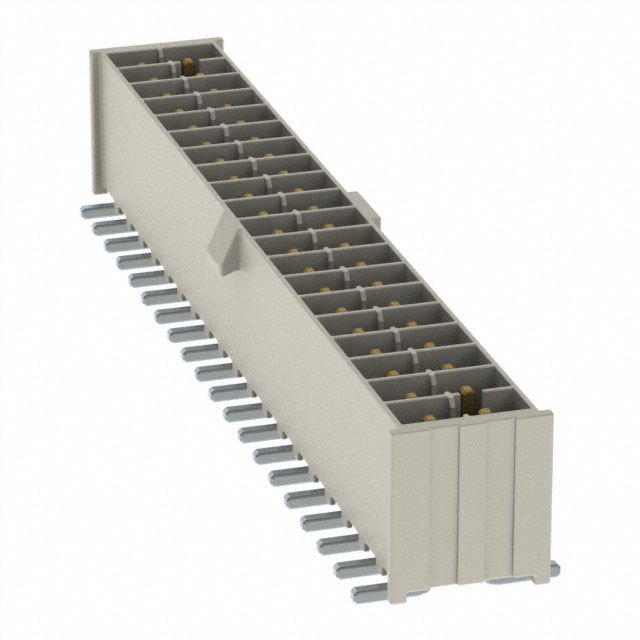

IPL1-120-02-L-D-K

Active

Samtec Inc.

CONN HEADER SMD 40POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsIPL1 Datasheet IPD1 Series Other Related Documents 03 +2

IPL1-120-02-L-D-K

Active

Samtec Inc.

CONN HEADER SMD 40POS 2.54MM

Deep-Dive with AI

DocumentsIPL1 Datasheet IPD1 Series Other Related Documents 03 +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IPL1-120-02-L-D-K

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Mating	5.46 mm
Contact Length - Mating	0.215 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Locking Ramp
Insulation Color	Natural
Insulation Height	8.13 mm
Insulation Height	0.32 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	40
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	954 VDC, 675 VAC

IPL1-120 Series

Part	Shrouding	Contact Finish - Mating	Contact Finish - Post	Termination	Contact Type	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Insulation Material	Mounting Type	Number of Rows	Number of Positions	Fastening Type	Contact Length - Post [x]	Contact Length - Post [x]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Material	Number of Positions Loaded	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Contact Length - Mating	Contact Length - Mating	Contact Shape	Style	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Features	Contact Length - Post	Contact Length - Post
Samtec Inc. IPL1-120-01-S-D-P	Shrouded - 4 Wall	Gold	Tin	Solder	Male Pin	675 VAC 954 VDC	-55 °C	125 °C	8.13 mm	0.32 in	Liquid Crystal Polymer (LCP)	Through Hole	2	40	Locking Ramp	0.12 in	3.05 mm	2.54 mm	0.1 in	Phosphor Bronze	All	Header	30 Áin	0.76 Ám	Natural	5.46 mm	0.215 in	Square	Board to Cable/Wire	UL94 V-0	0.1 in	2.54 mm
Samtec Inc. IPL1-120-02-L-SH-K	Shrouded - 4 Wall	Gold	Tin	Solder	Male Pin	675 VAC 954 VDC	-55 °C	125 °C	5.6 mm	0.22 in	Liquid Crystal Polymer (LCP)	Surface Mount Right Angle	1	20	Locking Ramp					Phosphor Bronze	All	Header	10 çin	0.25 çm	Natural	5.46 mm	0.215 in	Square	Board to Cable/Wire	UL94 V-0	0.1 in	2.54 mm	Board Guide
Samtec Inc. IPL1-120-02-L-S-K	Shrouded - 4 Wall	Gold	Tin	Solder	Male Pin	675 VAC 954 VDC	-55 °C	125 °C	8.13 mm	0.32 in	Liquid Crystal Polymer (LCP)	Surface Mount	1	20	Locking Ramp					Phosphor Bronze	All	Header	10 çin	0.25 çm	Natural	5.46 mm	0.215 in	Square	Board to Cable/Wire	UL94 V-0	0.1 in	2.54 mm
Samtec Inc. IPL1-120-01-L-D-RA-P	Shrouded - 4 Wall	Gold	Tin	Solder	Male Pin	675 VAC 954 VDC	-55 °C	125 °C	7.37 mm	0.29 in	Liquid Crystal Polymer (LCP)	Through Hole Right Angle	2	40	Locking Ramp			2.54 mm	0.1 in	Phosphor Bronze	All	Header	10 çin	0.25 çm	Natural	5.46 mm	0.215 in	Square	Board to Cable/Wire	UL94 V-0	0.1 in	2.54 mm		2.16 mm	0.085 in
Samtec Inc. IPL1-120-02-L-D-K-TR	Shrouded - 4 Wall	Gold	Tin	Solder	Male Pin	675 VAC 954 VDC	-55 °C	125 °C	8.13 mm	0.32 in	Liquid Crystal Polymer (LCP)	Surface Mount	2	40	Locking Ramp			2.54 mm	0.1 in	Phosphor Bronze	All	Header	10 çin	0.25 çm	Natural	5.46 mm	0.215 in	Square	Board to Cable/Wire	UL94 V-0	0.1 in	2.54 mm
Samtec Inc. IPL1-120-02-S-D-P	Shrouded - 4 Wall	Gold	Tin	Solder	Male Pin	675 VAC 954 VDC	-55 °C	125 °C	8.13 mm	0.32 in	Liquid Crystal Polymer (LCP)	Surface Mount	2	40	Locking Ramp			2.54 mm	0.1 in	Phosphor Bronze	All	Header	30 Áin	0.76 Ám	Natural	5.46 mm	0.215 in	Square	Board to Cable/Wire	UL94 V-0	0.1 in	2.54 mm
Samtec Inc. IPL1-120-01-S-S-K	Shrouded - 4 Wall	Gold	Tin	Solder	Male Pin	675 VAC 954 VDC	-55 °C	125 °C	8.13 mm	0.32 in	Liquid Crystal Polymer (LCP)	Through Hole	1	20	Locking Ramp	0.12 in	3.05 mm			Phosphor Bronze	All	Header	30 Áin	0.76 Ám	Natural	5.46 mm	0.215 in	Square	Board to Cable/Wire	UL94 V-0	0.1 in	2.54 mm
Samtec Inc. IPL1-120-01-F-D-K	Shrouded - 4 Wall	Gold	Tin	Solder	Male Pin	675 VAC 954 VDC	-55 °C	125 °C	8.13 mm	0.32 in	Liquid Crystal Polymer (LCP)	Through Hole	2	40	Locking Ramp	0.12 in	3.05 mm	2.54 mm	0.1 in	Phosphor Bronze	All	Header	3 µin	0.076 µm	Natural	5.46 mm	0.215 in	Square	Board to Cable/Wire	UL94 V-0	0.1 in	2.54 mm
Samtec Inc. IPL1-120-01-F-D-P	Shrouded - 4 Wall	Gold	Tin	Solder	Male Pin	675 VAC 954 VDC	-55 °C	125 °C	8.13 mm	0.32 in	Liquid Crystal Polymer (LCP)	Through Hole	2	40	Locking Ramp	0.12 in	3.05 mm	2.54 mm	0.1 in	Phosphor Bronze	All	Header	3 µin	0.076 µm	Natural	5.46 mm	0.215 in	Square	Board to Cable/Wire	UL94 V-0	0.1 in	2.54 mm
Samtec Inc. IPL1-120-02-L-D-K	Shrouded - 4 Wall	Gold	Tin	Solder	Male Pin	675 VAC 954 VDC	-55 °C	125 °C	8.13 mm	0.32 in	Liquid Crystal Polymer (LCP)	Surface Mount	2	40	Locking Ramp			2.54 mm	0.1 in	Phosphor Bronze	All	Header	10 çin	0.25 çm	Natural	5.46 mm	0.215 in	Square	Board to Cable/Wire	UL94 V-0	0.1 in	2.54 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 6.23
		10	$ 5.55
		25	$ 5.12
		50	$ 4.50
		100	$ 4.00
