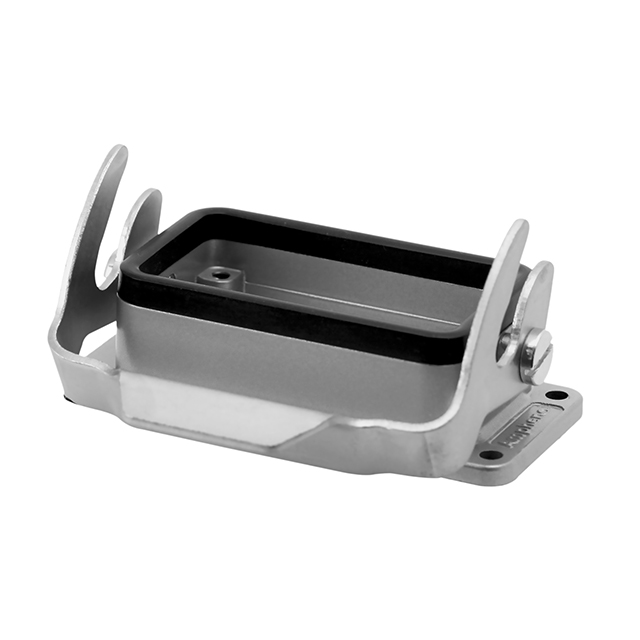

C14610F0100011

Active

Amphenol Tuchel Industrial

CONN BASE BOTTOM ENTRY SZE10

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN BASE BOTTOM ENTRY SZE10

Technical Specifications

Parameters and characteristics for this part

Specification	C14610F0100011

Connector Type	Base - Panel Mount
Housing Material	Aluminum Alloy, Die Cast
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Size	E10
Size / Dimension [x]	93 mm
Size / Dimension [x]	3.661 inches
Size / Dimension [y]	43 mm
Size / Dimension [y]	1.693 in
Size / Dimension [z]	1.122 in
Size / Dimension [z]	28.5 mm
Style	Bottom Entry

Part	Connector Type	Size	Lock Location	Ingress Protection	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Style	Housing Material
Amphenol Tuchel Industrial C14610F0100001	Base - Panel Mount	E10	Locking Clip (2) on Base Bottom	IP65 - Dust Tight Water Resistant	1.122 in	43 mm	28.5 mm	1.693 in	93 mm	3.661 inches	100 °C	-40 °C	Bottom Entry	Aluminum Alloy Die Cast
Amphenol Tuchel Industrial C14610F0100011	Base - Panel Mount	E10	Locking Clip (1) on Base Bottom	IP65 - Dust Tight Water Resistant	1.122 in	43 mm	28.5 mm	1.693 in	93 mm	3.661 inches	100 °C	-40 °C	Bottom Entry	Aluminum Alloy Die Cast
Amphenol Tuchel Industrial C14610F0100901	Base - Panel Mount 90°	E10	Locking Clip (1) on Base Bottom	IP65 - Dust Tight Water Resistant							100 °C	-40 °C	Side Entry	Aluminum Alloy Die Cast

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Base - Panel Mount Connector Bottom Entry E10 IP65 - Dust Tight, Water Resistant
