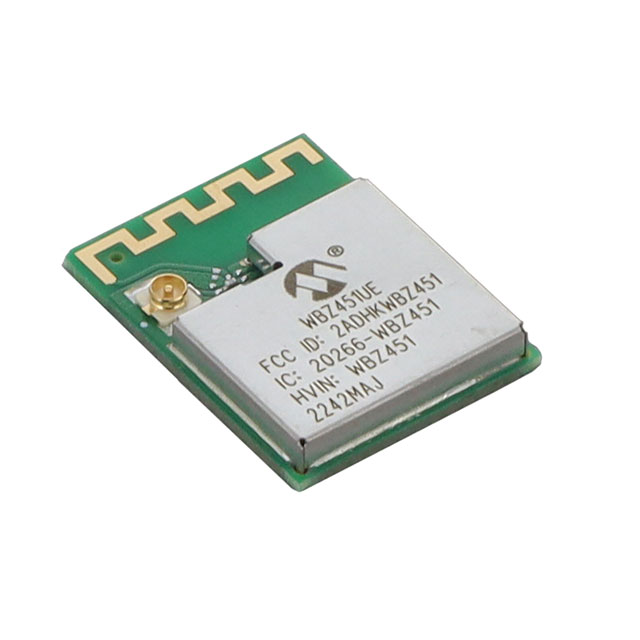

WBZ451UE-I
ActiveGLOBAL REGULATORY CERTIFIED, RF READY MULTI-PROTOCOL MCU MODULE WITH U.FL CONNECTOR
Deep-Dive with AI
Search across all available documentation for this part.
WBZ451UE-I
ActiveGLOBAL REGULATORY CERTIFIED, RF READY MULTI-PROTOCOL MCU MODULE WITH U.FL CONNECTOR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | WBZ451UE-I |
|---|---|
| Antenna Type | Antenna Not Included, U.FL |
| Data Rate | 2 Mbps |
| Frequency | 2.4 GHz |
| Memory Size | 1 MB |
| Modulation | O-QPSK |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 39-SMD Module |
| Power - Output | 12 dBm |
| RF Family/Standard | Bluetooth, 802.15.4 |
| Sensitivity | -103 dBm |
| Serial Interfaces | HCI, PWM, USART, JTAG, SPI, IrDA, UART, I2C, GPIO |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 1.9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 6.44 | |
| 100 | $ 6.03 | |||
| Microchip Direct | TRAY | 1 | $ 5.79 | |
| 100 | $ 5.43 | |||
| 1000 | $ 4.98 | |||
| 5000 | $ 4.75 | |||
WBZ451UE Series
Global Regulatory Certified, RF Ready Multi-Protocol MCU Module With U.FL Connector
| Part | Modulation | Data Rate | Power - Output | Memory Size | Package / Case | Sensitivity | RF Family/Standard | Voltage - Supply [Max] | Voltage - Supply [Min] | Serial Interfaces | Operating Temperature [Max] | Operating Temperature [Min] | Frequency | Mounting Type | Antenna Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology WBZ451UE-I | O-QPSK | 2 Mbps | 12 dBm | 1 MB | 39-SMD Module | -103 dBm | 802.15.4, Bluetooth | 3.6 V | 1.9 V | GPIO, HCI, I2C, IrDA, JTAG, PWM, SPI, UART, USART | 85 °C | -40 °C | 2.4 GHz | Surface Mount | Antenna Not Included, U.FL |
Description
General part information
WBZ451UE Series
[Application Examples](https://mplab-discover.microchip.com/v2/category/com.microchip.code.examples?dsl=wbz45)
---
Part of the [PIC32CX-BZ family](https://www.microchip.com/en-us/products/microcontrollers-and-microprocessors/32-bit-mcus/pic32-32-bit-mcus/pic32cx-bz), WBZ451UE is certified to Bluetooth® 5.2, Zigbee® 3.0, Thread 1.3.0, and supports IEEE® mesh protocols as well as multi-protocol operations. Designed from the ground up to enable you to go to market quickly, WBZ451UE is powered by a 64 MHz ARM® Cortex® M4F and is packed with features including OTA, hardware arbitration for multi-protocol wireless, hardware-based security accelerator, and a rich set of peripherals.
