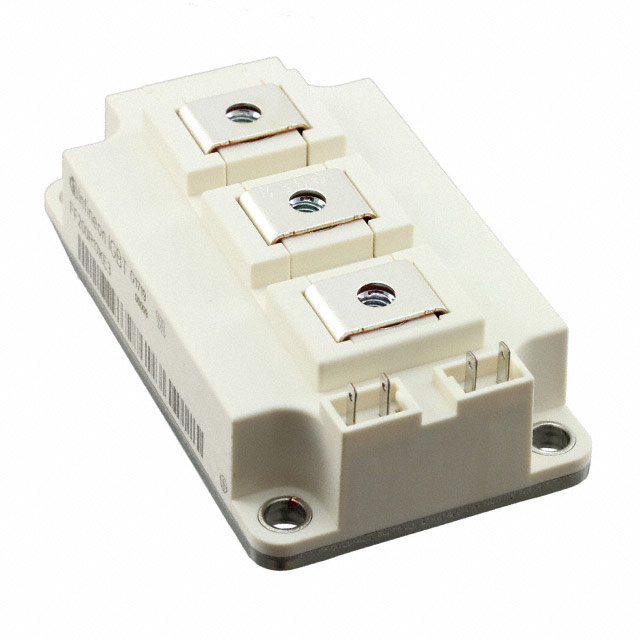

FF200R33KF2CNOSA1

Obsolete

Infineon Technologies

IGBT MOD 3300V 330A 2200W

Search across all available documentation for this part.

Obsolete

Infineon Technologies

IGBT MOD 3300V 330A 2200W

Technical Specifications

Parameters and characteristics for this part

Specification	FF200R33KF2CNOSA1

Configuration	2 Independent
Current - Collector (Ic) (Max) [Max]	330 A
Current - Collector Cutoff (Max) [Max]	5 mA
Input	Standard
Input Capacitance (Cies) @ Vce	25 nF
Mounting Type	Chassis Mount
NTC Thermistor	False
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Power - Max [Max]	2200 W
Supplier Device Package	Module
Vce(on) (Max) @ Vge, Ic	4.25 V
Voltage - Collector Emitter Breakdown (Max)	3300 V

Part	Input Capacitance (Cies) @ Vce	Configuration	Current - Collector (Ic) (Max) [Max]	Current - Collector Cutoff (Max) [Max]	Input	Voltage - Collector Emitter Breakdown (Max)	Power - Max [Max]	Package / Case	Vce(on) (Max) @ Vge, Ic	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	NTC Thermistor	Mounting Type
Infineon Technologies FF200R33KF2CNOSA1	25 nF	2 Independent	330 A	5 mA	Standard	3300 V	2200 W	Module	4.25 V	Module	125 °C	-40 °C		Chassis Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

IGBT Module 2 Independent 3300 V 330 A 2200 W Chassis Mount Module
