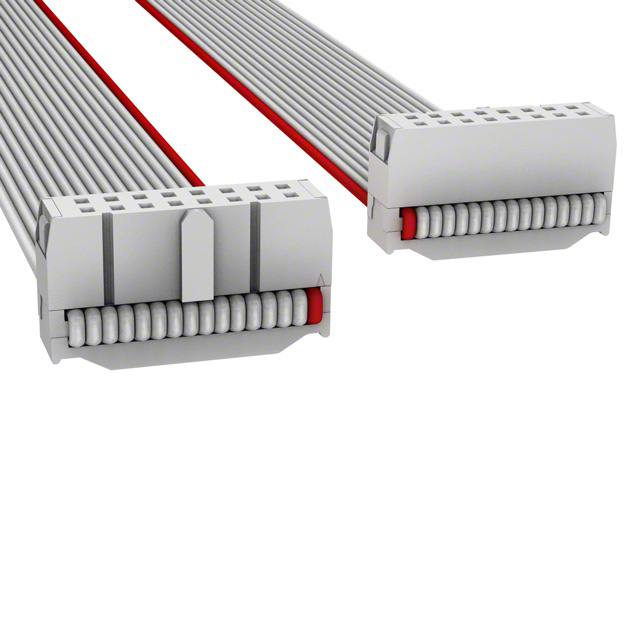

H3DDS-1606G

Active

Assmann WSW Components

IDC CBL - HHKR16S/AE16G/HHKR16S

Search across all available documentation for this part.

Active

Assmann WSW Components

IDC CBL - HHKR16S/AE16G/HHKR16S

Technical Specifications

Parameters and characteristics for this part

Specification	H3DDS-1606G

Cable Termination	IDC
Connector Type	Socket to Socket
Contact Finish	Tin
Features	Polarizing Key, Strain Relief
Length	152.4 mm
Length	6 "
Length	0.5 '
Number of Positions	16
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

Part	Number of Rows	Shielding	Length	Length	Length	Cable Termination	Pitch - Cable	Pitch - Cable	Connector Type	Number of Positions	Pitch - Connector	Pitch - Connector	Features	Contact Finish	Length [x]	Length [x]
Assmann WSW Components H3DDS-1606G	2	Unshielded	152.4 mm	6 "	0.5 '	IDC	0.05 "	1.27 mm	Socket to Socket	16	0.1 in	2.54 mm	Polarizing Key Strain Relief	Tin
Assmann WSW Components H3DDS-1618G	2	Unshielded				IDC	0.05 "	1.27 mm	Socket to Socket	16	0.1 in	2.54 mm	Polarizing Key Strain Relief	Tin	457.2 mm	1.5 ft
Assmann WSW Components H3DDS-1636G	2	Unshielded				IDC	0.05 "	1.27 mm	Socket to Socket	16	0.1 in	2.54 mm	Polarizing Key Strain Relief	Tin	914.4 mm	3 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

16 Position Cable Assembly Rectangular Socket to Socket 0.500' (152.40mm, 6.00")
