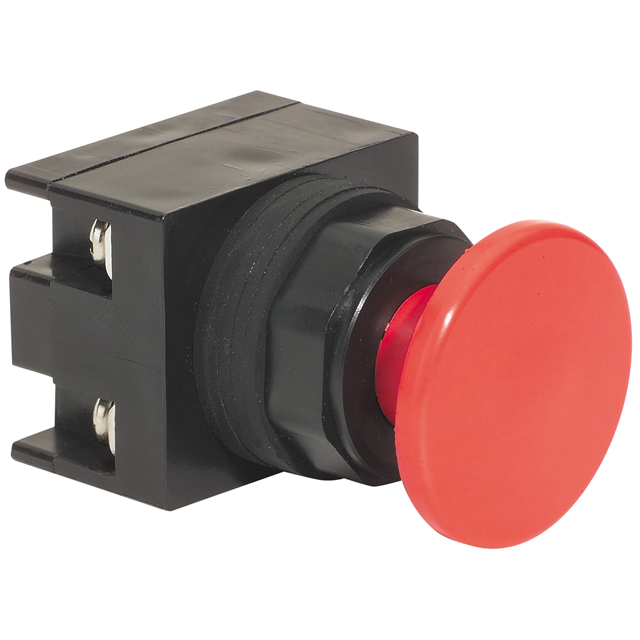

22PPNONC-XPMRD

Active

c3controls

22MM PUSH PULL MSHRM CAP NONC

Search across all available documentation for this part.

Active

c3controls

22MM PUSH PULL MSHRM CAP NONC

Technical Specifications

Parameters and characteristics for this part

Specification	22PPNONC-XPMRD

Actuator Marking	No Marking
Actuator Type	Mushroom, Button, Round
Circuit	DPST-NO/NC
Color - Actuator/Cap	Red
Current Rating (Amps)	10 A, 5 A
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Rear
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	25.5 mm
Switch Function	On-Off, Off-On
Termination Style	Screw Terminal
Type	Standard
Voltage Rating - AC	72 V
Voltage Rating - DC	28 V

22MM PUSH PULL MSHRM CAP NONC

Part	Ingress Protection	Switch Function	Actuator Marking	Panel Cutout Dimensions [diameter]	Voltage Rating - DC	Voltage Rating - AC	Mechanical Life	Current Rating (Amps)	Mounting Type	Type	Termination Style	Circuit	Operating Temperature [Min]	Operating Temperature [Max]	Color - Actuator/Cap	Actuator Type
c3controls 22PPNONC-XPMRD	IP65 - Dust Tight, Water Resistant	Off-On, On-Off	No Marking	25.5 mm	28 V	72 V	1000000 Cycles	5 A, 10 A	Panel Mount, Rear	Standard	Screw Terminal	DPST-NO/NC	-40 °C	55 °C	Red	Button, Mushroom, Round

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Pushbutton Switch DPST-NO/NC Standard Panel Mount, Rear
