MVU14-8R/SK

Active

3M (TC)

RING TONGUE TERMINAL 14-16AWG ETP COPPER BLUE 20.32MM TIN CASE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet MVU14-xR Selection Guide +1

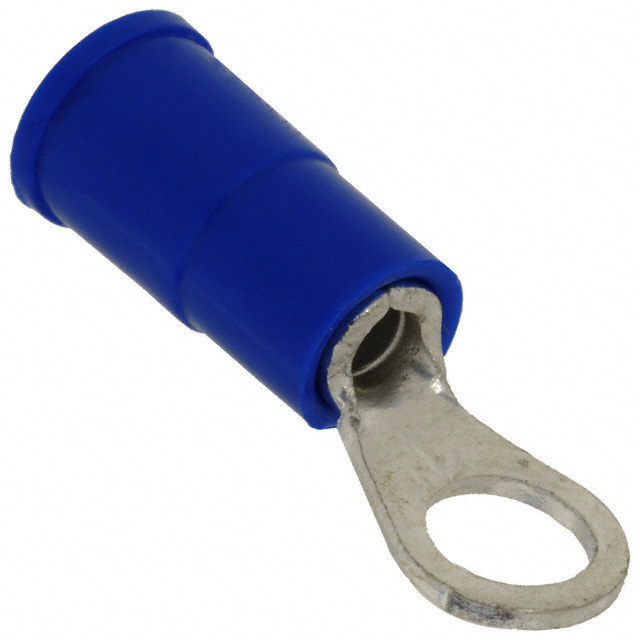

MVU14-8R/SK

Active

3M (TC)

RING TONGUE TERMINAL 14-16AWG ETP COPPER BLUE 20.32MM TIN CASE

Deep-Dive with AI

DocumentsDatasheet MVU14-xR Selection Guide +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MVU14-8R/SK

Color	Blue
Contact Finish	Tin
Contact Material	ETP, Copper
Insulation	Insulated
Length - Overall [x]	20.32 mm
Length - Overall [x]	0.8 in
Material - Insulation	Vinyl
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	8 Stud
Terminal Type	Circular
Termination	Crimp
Thickness	0.03 in
Thickness	0.76 mm
Width - Outer Edges [y]	0.25 "
Width - Outer Edges [y]	6.35 mm

MVU14 Series

Part	Terminal Type	Mounting Type	Contact Material	Features	Stud/Tab Size	Length - Termination [x]	Length - Termination [x]	Insulation	Length - Overall [x]	Length - Overall [x]	Contact Finish	Termination	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Material - Insulation	Color	Number of Wire Entries	Tab Width	Tab Width	Tab Thickness	Tab Thickness	Gender	Length - Overall	Length - Overall	Stud/Tab Size	Length - Ring Center to Termination	Length - Ring Center to Termination	Width - Outer Edges	Width - Outer Edges	Width - Outer Edges [y]	Width - Outer Edges [y]	Thickness	Thickness	Insulation Diameter	Insulation Diameter [diameter]
3M (TC) MVU14-6FBK	Standard	Free Hanging (In-Line)	Copper ETP	Butted Seam	6 Stud	0.45 in	11.43 mm	Insulated	21.59 mm	0.85 "	Tin	Crimp	0.25 in	6.35 mm	Vinyl	Blue
3M (TC) MVU14BCK	Butt Splice Individual Openings Inline							Fully Insulated				Crimp				Blue	2
3M (TC) MVU14-250DMFK	Stacked	Free Hanging (In-Line)	Brass	Butted Seam				Non-Mating End Insulated	22.1 mm	0.87 in	Tin	Crimp				Blue		6.35 mm	0.25 in	0.032 in	0.81 mm	Female Male
3M (TC) MVU14-8FK	Standard	Free Hanging (In-Line)	Copper ETP	Butted Seam		0.45 in	11.43 mm	Insulated			Tin	Crimp			Vinyl	Blue							0.9 in	22.86 mm	8 Stud	0.29 in	7.37 mm	8.64 mm	0.34 in
3M (TC) MVU14-8R/SK	Circular	Free Hanging (In-Line)	Copper ETP					Insulated	20.32 mm	0.8 in	Tin	Crimp			Vinyl	Blue									8 Stud					0.25 "	6.35 mm	0.03 in	0.76 mm
3M (TC) MVU14-10FBK	Standard	Free Hanging (In-Line)	Copper ETP	Butted Seam	10 Stud	0.45 in	11.43 mm	Insulated	21.59 mm	0.85 "	Tin	Crimp	0.25 in	6.35 mm	Vinyl	Blue
3M (TC) MVU14-6FB/SX-BOTTLE	Standard	Free Hanging (In-Line)	Copper ETP	Butted Seam	6 Stud	0.45 in	11.43 mm	Insulated	21.59 mm	0.85 "	Tin	Crimp	0.25 in	6.35 mm	Vinyl	Blue														0.25 "	6.35 mm
3M (TC) MVU14-250DFX	Standard	Free Hanging (In-Line)	Brass	Butted Seam				Non-Mating End Insulated	22.1 mm	0.87 in	Tin	Crimp				Blue		6.35 mm	0.25 in	0.032 in	0.81 mm	Female												3.68 mm	0.145 "
3M (TC) MVU14-250DFK	Standard	Free Hanging (In-Line)	Brass	Butted Seam				Non-Mating End Insulated	22.1 mm	0.87 in	Tin	Crimp				Blue		6.35 mm	0.25 in	0.032 in	0.81 mm	Female												3.68 mm	0.145 "
3M (TC) MVU14-10R/LK	Circular	Free Hanging (In-Line)	Copper ETP	Butted Seam	10 Stud			Insulated		0.93 in	Tin	Crimp			Vinyl	Blue								23.62 mm				7.87 mm		0.31 in		0.03 in	0.76 mm
