1050525-1

Active

TE Connectivity AMP Connectors

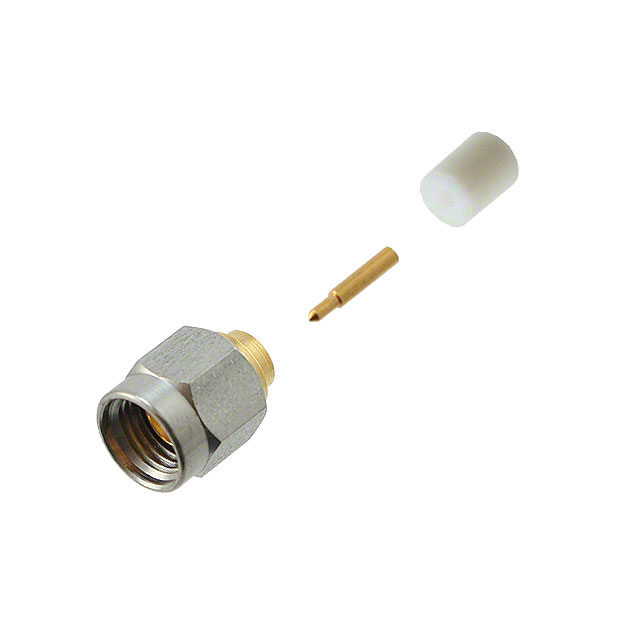

CONN SMA PLUG STR 50 OHM SOLDER

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN SMA PLUG STR 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	1050525-1

Body Finish	Gold
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	500 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 6.20

CONN SMA PLUG STR 50 OHM SOLDER

Part	Body Material	Contact Termination	Body Finish	Frequency - Max [Max]	Center Contact Plating	Mounting Type	Impedance	Number of Ports	Mating Cycles	Connector Type	Housing Color	Dielectric Material	Shield Termination	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Center Contact Material	Connector Style
TE Connectivity AMP Connectors 1050525-1	Stainless Steel	Solder	Gold	18 GHz	Gold	Free Hanging (In-Line)	50 Ohms	1	500	Male Pin, Plug	Gold	Polytetrafluoroethylene (PTFE)	Solder	-65 ░C	105 ░C	500 V	Beryllium Copper	SMA

General part information

SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
