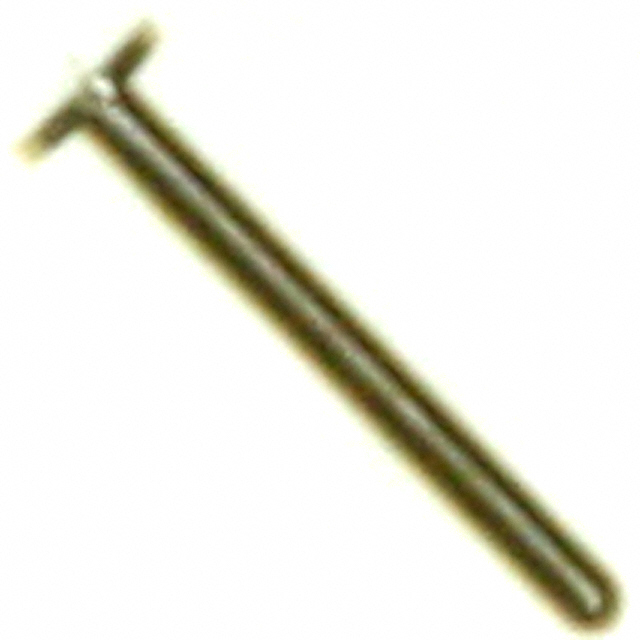

5240-0-00-15-00-00-33-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC 0.025DIA GOLD
Deep-Dive with AI
Search across all available documentation for this part.
5240-0-00-15-00-00-33-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC 0.025DIA GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 5240-0-00-15-00-00-33-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Brass Alloy |
| Flange Diameter [diameter] | 0.062 in |
| Flange Diameter [diameter] | 1.57 mm |
| Insulation | Non-Insulated |
| Length - Above Flange [x] | 5.89 mm |
| Length - Above Flange [x] | 0.232 in |
| Length - Overall | 6.1 mm |
| Length - Overall [x] | 0.24 " |
| Mounting Hole Diameter [diameter] | 0.74 mm |
| Mounting Hole Diameter [diameter] | 0.029 in |
| Mounting Type | Through Hole |
| Pin Size - Above Flange [diameter] | 0.025 in |
| Pin Size - Above Flange [diameter] | 0.64 mm |
| Terminal Style | Single End, Nail Head |
| Terminal Type | PC Pin |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.68 | |
| 10 | $ 0.59 | |||
| 25 | $ 0.54 | |||
| 50 | $ 0.51 | |||
| 100 | $ 0.49 | |||
| 250 | $ 0.45 | |||
| 500 | $ 0.43 | |||
| 1000 | $ 0.35 | |||
| 2500 | $ 0.32 | |||
Description
General part information
5240-0 Series
PC Pin Terminal Connector Through Hole Gold 0.025" (0.64mm) Dia
