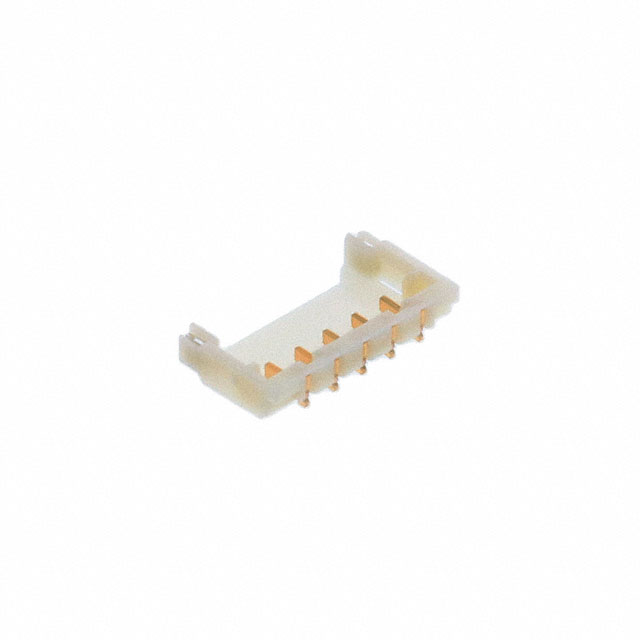

BM05B-ACHSS-A-GAN-ETF

Active

JST Sales America Inc.

CONN HEADER SMD R/A 5POS 1.2MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER SMD R/A 5POS 1.2MM

Technical Specifications

Parameters and characteristics for this part

Specification	BM05B-ACHSS-A-GAN-ETF

Connector Type	Header
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Contact Shape	Rectangular
Contact Type	Male Blade
Current Rating (Amps)	1.5 A
Fastening Type	Detent Lock
Features	Solder Retention
Insulation Color	Natural
Insulation Height [z]	0.055 in
Insulation Height [z]	1.4 mm
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	0.047 in
Pitch - Mating	1.2 mm
Shrouding	Shrouded - 3 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	50 V

Part	Fastening Type	Insulation Color	Contact Material	Mounting Type	Insulation Height [z]	Insulation Height [z]	Features	Termination	Shrouding	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Contact Shape	Insulation Material	Style	Number of Positions Loaded	Voltage Rating	Current Rating (Amps)	Number of Rows	Connector Type	Material Flammability Rating	Contact Type
JST Sales America Inc. BM05B-ACHSS-A-GAN-ETF	Detent Lock	Natural	Copper Alloy	Surface Mount Right Angle	0.055 in	1.4 mm	Solder Retention	Solder	Shrouded - 3 Wall	-25 °C	85 °C	0.047 in	1.2 mm	Gold	Rectangular	Thermoplastic	Board to Cable/Wire	All	50 V	1.5 A	1	Header	UL94 V-0	Male Blade

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Surface Mount, Right Angle 5 position 0.047" (1.20mm)
