M12A-10BFFM-SL8B01

Active

Amphenol LTW

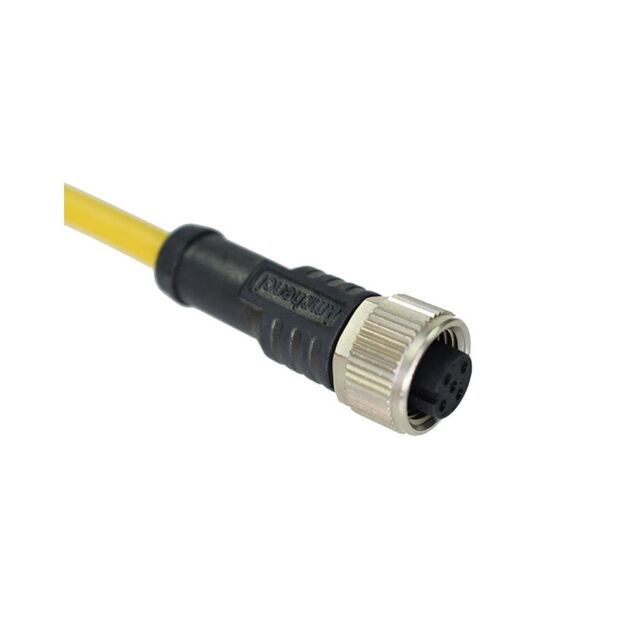

M SERIES SENSOR CONNECTOR, M12, A CODE, METAL, 1.5A, 10 PINS, FEMALE CONNECTOR, FEMALE CONTACT, STRAIGHT, SCREW THREAD, OVERMOLD

Search across all available documentation for this part.

Active

Amphenol LTW

M SERIES SENSOR CONNECTOR, M12, A CODE, METAL, 1.5A, 10 PINS, FEMALE CONNECTOR, FEMALE CONTACT, STRAIGHT, SCREW THREAD, OVERMOLD

Technical Specifications

Parameters and characteristics for this part

Specification	M12A-10BFFM-SL8B01

1st Connector Gender	Female Sockets
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	10
1st Connector Number of Positions Loaded	All
1st Connector Orientation	A
1st Connector Shell Size - Insert	M12
1st Connector Type	Plug
2nd Connector Type	Wire Leads
Assembly Configuration	Standard
Cable Material	Polyurethane (PUR)
Cable Type	Round
Color	Black
Ingress Protection	IP68, IP69K
Length [x]	1 m
Length [x]	3.28 ft
Shielding	Unshielded
Usage	Industrial Environments

Part	1st Connector Gender	Usage	1st Connector Orientation	Assembly Configuration	Cable Material	Color	Length [x]	Length [x]	Cable Type	1st Connector Number of Positions Loaded	1st Connector Type	2nd Connector Type	Ingress Protection	1st Connector Shell Size - Insert	1st Connector Mounting Type	Shielding	1st Connector Number of Positions
Amphenol LTW M12A-10BFFM-SL8D01	Female Sockets	Industrial Environments	A	Standard	Polyvinyl Chloride (PVC)	Black	1 m	3.28 ft	Round	All	Plug	Wire Leads	IP68 IP69K	M12	Free Hanging (In-Line)	Unshielded	10
Amphenol LTW M12A-10BFFM-SR8B01	Female Sockets	Industrial Environments	A	Standard	Polyurethane (PUR)	Black	1 m	3.28 ft	Round	All	Plug Right Angle	Wire Leads	IP68 IP69K	M12	Free Hanging (In-Line)	Unshielded	10
Amphenol LTW M12A-10BFFM-SR8D01	Female Sockets	Industrial Environments	A	Standard	Polyvinyl Chloride (PVC)	Black	1 m	3.28 ft	Round	All	Plug Right Angle	Wire Leads	IP68 IP69K	M12	Free Hanging (In-Line)	Unshielded	10
Amphenol LTW M12A-10BFFM-SR8A01	Female Sockets	Industrial Environments	A	Standard	Polyvinyl Chloride (PVC)	Yellow	1 m	3.28 ft	Round	All	Plug Right Angle	Wire Leads	IP68 IP69K	M12	Free Hanging (In-Line)	Unshielded	10
Amphenol LTW M12A-10BFFM-SL8B01	Female Sockets	Industrial Environments	A	Standard	Polyurethane (PUR)	Black	1 m	3.28 ft	Round	All	Plug	Wire Leads	IP68 IP69K	M12	Free Hanging (In-Line)	Unshielded	10

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Circular Cable Assembly Unshielded 3.28' (1.00m)
