SY89845UMG-TR
ActiveMicrochip Technology
IC MULTIPLEXER 1 X 2:1 24MLF
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SY89845UMG-TR
ActiveMicrochip Technology
IC MULTIPLEXER 1 X 2:1 24MLF
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | SY89845UMG-TR | SY89845 Series |
|---|---|---|
| - | - | |
| Circuit [custom] | 2:1 | 2:1 |
| Circuit [custom] | 1 | 1 |
| Independent Circuits | 1 | 1 |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |

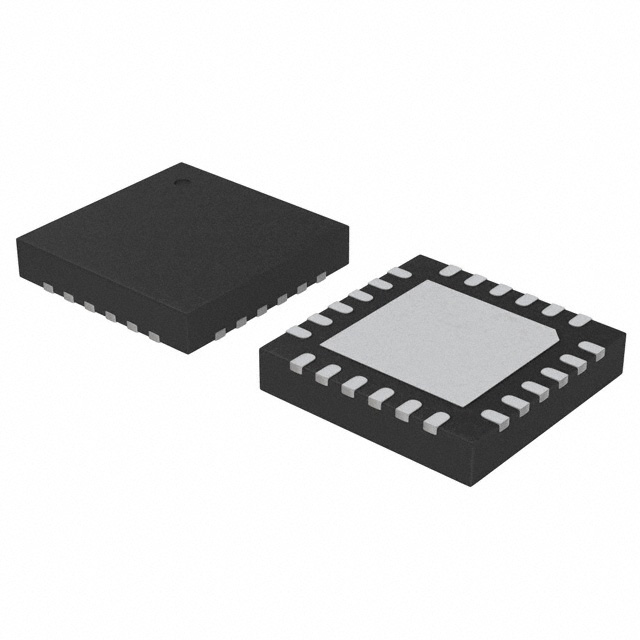

| Package / Case | 24-MLF®, 24-VFQFN Exposed Pad | 24-MLF®, 24-VFQFN Exposed Pad |
| Supplier Device Package | 24-MLF® (4x4) | 24-MLF® (4x4) |
| Type | Multiplexer | Multiplexer |
| Voltage - Supply [Max] | 3.6 V, 2.625 V | 2.625 - 3.6 V |
| Voltage - Supply [Min] | 2.375 V, 3 V | 2.375 - 3 V |
| Voltage Supply Source | Single Supply | Single Supply |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
SY89845 Series
IC MULTIPLEXER 1 X 2:1 24MLF
| Part | Mounting Type | Supplier Device Package | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Supply Source | Package / Case | Type | Circuit [custom] | Circuit [custom] | Voltage - Supply [Max] | Voltage - Supply [Min] | Independent Circuits |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology SY89845UMG-TR | Surface Mount | 24-MLF® (4x4) | 85 °C | -40 °C | Single Supply | 24-MLF®, 24-VFQFN Exposed Pad | Multiplexer | 2:1 | 1 | 2.625 V, 3.6 V | 2.375 V, 3 V | 1 |
Microchip Technology SY89845UMG | ||||||||||||
Microchip Technology SY89845UMG | Surface Mount | 24-MLF® (4x4) | 85 °C | -40 °C | Single Supply | 24-MLF®, 24-VFQFN Exposed Pad | Multiplexer | 2:1 | 1 | 2.625 V, 3.6 V | 2.375 V, 3 V | 1 |
Description
General part information
SY89845 Series
Multiplexer 1 x 2:1 24-MLF® (4x4)
