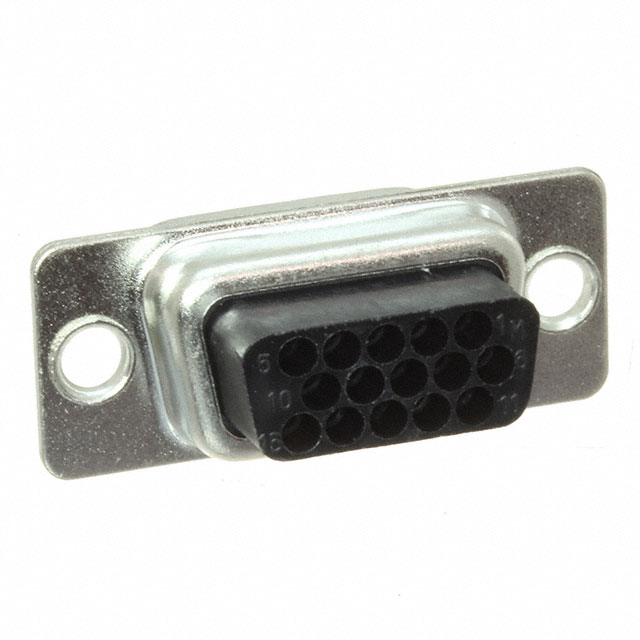

L777HRE15P
ActiveAmphenol ICC (Commercial Products)
CONN D-SUB HD HOUSING PLUG 15POS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
L777HRE15P
ActiveAmphenol ICC (Commercial Products)
CONN D-SUB HD HOUSING PLUG 15POS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | L777HRE15P |
|---|---|
| Color | Black |
| Connector Style | High Density, D-Sub |
| Connector Type | Plug for Male Contacts |
| Contact Type | Signal |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | Grounding Indents |
| Flange Feature | Housing/Shell (Unthreaded) |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 15 |
| Number of Rows | 3 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Finish Thickness | 2.54 µm |
| Shell Finish Thickness | 100 µin |
| Shell Size, Connector Layout [custom] | DE, E |
| Shell Size, Connector Layout [custom] | 1 |
| Shell Size, Connector Layout [custom] | High Density |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.13 | |
| 10 | $ 0.96 | |||
| 25 | $ 0.92 | |||
| 40 | $ 0.90 | |||
| 90 | $ 0.86 | |||
| 270 | $ 0.78 | |||
| 450 | $ 0.70 | |||
| 990 | $ 0.63 | |||
| 2430 | $ 0.57 | |||
Description
General part information
L777HRE15 Series
Plug for Male Contacts Housing D-Sub, High Density Connector 15 Position
