STSPIN32G4 demonstration board for three-phase brushless motors

Part	Contents	Type	Supplied Contents	Utilized IC / Part	Function	Embedded	Embedded	Primary Attributes
STMicroelectronics EVSPIN32G4NH	Board(s)	Power Management	Board(s)	STSPIN32G4	Motor Controller/Driver	32-Bit MCU		Motors (BLDC)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 214.17

Description

General part information

EVSPIN32G4NH Series

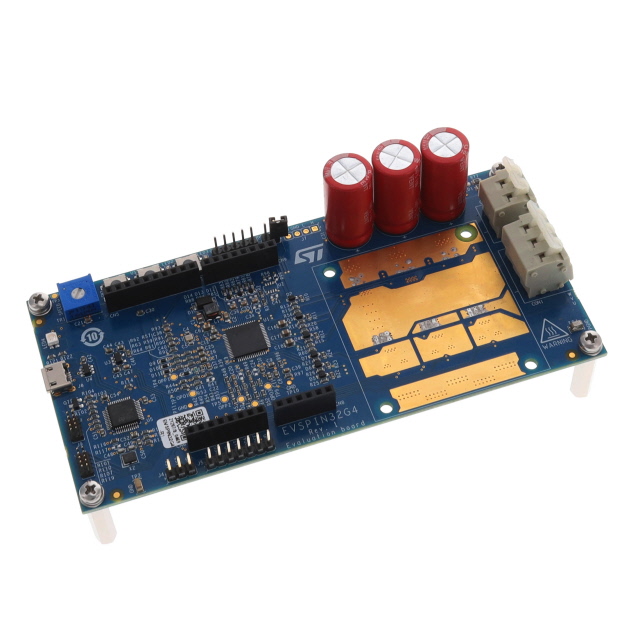

The EVSPIN32G4 is a demonstration board based on the STSPIN32G4 system in package and STL110N10F7 power MOSFETs. The STSPIN32G4 integrates in a 9x9 mm VFQFPN package, a triple high-performance half-bridge gate driver with a rich set of programmable features and one mixed signal STM32G431 microcontroller.

The integrated operational amplifiers for current sensing, the drain-source voltage sensing of each power MOSFET and comparators for overcurrent protection make it a fully integrated solution for motor control.

Thanks to the integrated voltage regulators both the gate driver and control logic supplies can be generated starting from the motor supply without dedicated circuitry.
