5187-C-48

Active

Pomona Electronics

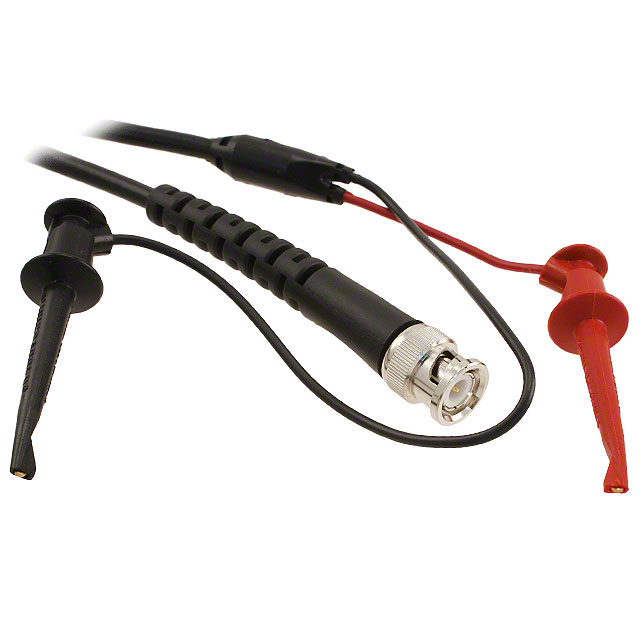

TEST LEAD BNC TO GRAB HOOK 48"

Search across all available documentation for this part.

Active

Pomona Electronics

TEST LEAD BNC TO GRAB HOOK 48"

Technical Specifications

Parameters and characteristics for this part

Specification	5187-C-48

1st Connector	BNC, Male Plug
2nd Connector	Mini Hook (2)
Cable Length	48 in
Cable Length	1219.2 mm
Cable Type	RG-58C/U
Color	Black Cable, Black and Red Leads
Configuration	Hook, BNC to Grabber
Material - Insulation	Poly-Vinyl Chloride (PVC)
Temperature Range	50 °C
Temperature Range	122 °F
Voltage - Rated	300 VAC
Wire Gauge	20 AWG

Part	Color	Temperature Range	Temperature Range	Cable Type	Voltage - Rated	1st Connector	Configuration	Cable Length	Cable Length	2nd Connector	Wire Gauge	Material - Insulation
Pomona Electronics 5187-K-48	Black Cable Black and Red Leads	50 °C	122 °F	RG-174/U	300 VAC	BNC Male Plug	BNC to Grabber Hook	48 in	1219.2 mm	Mini Hook (2)	20 AWG	Poly-Vinyl Chloride (PVC)
Pomona Electronics 5187-C-36	Black Cable Black and Red Leads	50 °C	122 °F	RG-58C/U	300 VAC	BNC Male Plug	BNC to Grabber Hook	36 in	914.4 mm	Mini Hook (2)	20 AWG	Poly-Vinyl Chloride (PVC)
Pomona Electronics 5187-K-24	Black Cable Black and Red Leads	50 °C	122 °F	RG-174/U	300 VAC	BNC Male Plug	BNC to Grabber Hook	24 "	609.6 mm	Mini Hook (2)	20 AWG	Poly-Vinyl Chloride (PVC)
Pomona Electronics 5187-K-60	Black Cable Black and Red Leads	50 °C	122 °F	RG-174/U	300 VAC	BNC Male Plug	BNC to Grabber Hook	5 ft	1524 mm	Mini Hook (2)	20 AWG	Poly-Vinyl Chloride (PVC)
Pomona Electronics 5187-C-48	Black Cable Black and Red Leads	50 °C	122 °F	RG-58C/U	300 VAC	BNC Male Plug	BNC to Grabber Hook	48 in	1219.2 mm	Mini Hook (2)	20 AWG	Poly-Vinyl Chloride (PVC)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

48.0" (1219.20mm) BNC, Male Plug To Mini Hook (2) Test Lead 300VAC
