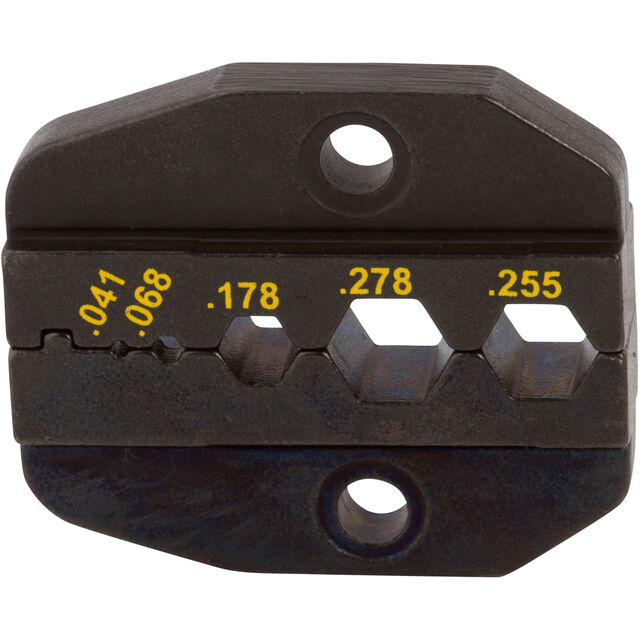

47-20253

Active

Amphenol RF

DIE SET .041 .068 .178 .278 .255

Search across all available documentation for this part.

Active

Amphenol RF

DIE SET .041 .068 .178 .278 .255

Technical Specifications

Parameters and characteristics for this part

Specification	47-20253

For Use With/Related Products	Coaxial, RF Connectors
Specifications	0.178 in, 0.255 in, 0.278 in, 0.041 in, 0.068 in
Tool Type	Die Set

Part	For Use With/Related Products	Specifications [x]	Specifications [z]	Specifications [y]	Cable Group	Compatible Tools	Tool Type	Specifications	Cable Group	Specifications [custom]
Amphenol RF 47-20000	Coaxial RF Connectors	0.068 in	0.255 in	0.213 in	141 142 223 303 400 58 59 62 8X LMR195 LMR200 LMR240 RG-55	47-10000	Die Set
Amphenol RF 47-20030	Coaxial RF Connectors				1694A Belden 1505A	47-10000	Die Set	0.042 in 0.068 in 0.255 in 0.278 in
Amphenol RF 47-20001	Coaxial RF Connectors				Belden 8281 RG-6	47-10000	Die Set	0.042 in 0.068 in 0.255 in 0.324 in	59
Amphenol RF 47-20256	Coaxial RF Connectors	0.075 in	0.429 in	0.075 in			Die Set
Amphenol RF 47-20253	Coaxial RF Connectors						Die Set	0.041 in 0.068 in 0.178 in 0.255 in 0.278 in
Amphenol RF 47-20024	Coaxial RF Connectors	0.068 in	0.324 in	0.178 in	174 179 187 188 316 Belden 8218 RG-6	47-10000	Die Set
Amphenol RF 47-20004	Coaxial RF Connectors	0.068 in	0.178 in	0.128 in	178 179 180 187 188 195 196 316 LMR100 RG-174	47-10000	Die Set
Amphenol RF 47-20254	Coaxial RF Connectors						Die Set			0.042 in 0.178 in 0.187 in
Amphenol RF 47-20250	BNC Coaxial RF TNC					47-10000	Die Set
Amphenol RF 47-20028	Coaxial RF Connectors				174 179 187 188 316 62 RG-59	47-10000	Die Set	0.052 " 0.068 in 0.178 in 0.255 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tool Die Set For Coaxial, RF Connectors

Technical documentation and resources

No documents available
