1217876-1
ActiveTE Connectivity AMP Connectors

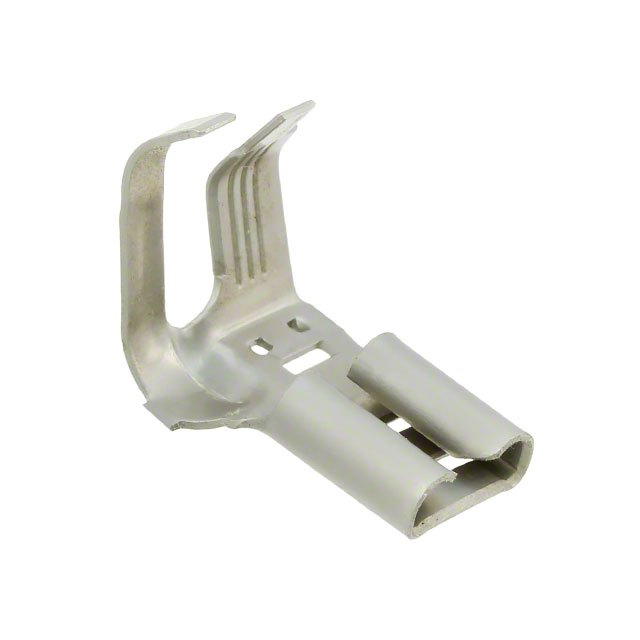

CONN QC RCPT 14AWG 0.250 CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
1217876-1
ActiveTE Connectivity AMP Connectors
CONN QC RCPT 14AWG 0.250 CRIMP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1217876-1 |
|---|---|
| Contact Finish | Nickel |
| Contact Material | Steel |
| Gender | Female |
| Insulation | Non-Insulated |
| Insulation Diameter [diameter] | 3.56 mm |
| Insulation Diameter [diameter] | 0.14 in |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Tab Length | 7.75 mm |
| Tab Length | 0.305 in |
| Tab Thickness | 0.032 in |
| Tab Thickness | 0.81 mm |
| Tab Width | 6.35 mm |
| Tab Width | 0.25 in |
| Terminal Type | Flag, Angled - 90° |
| Termination | Crimp |
| Wire Gauge | 13.5 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
1217876 Series
CONN QC RCPT 14AWG 0.250 CRIMP
| Part | Tab Length | Tab Length | Insulation Diameter [diameter] | Insulation Diameter [diameter] | Tab Width | Tab Width | Contact Material | Gender | Insulation | Contact Finish | Tab Thickness | Tab Thickness | Termination | Mounting Type | Terminal Type | Wire Gauge |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1217876-1 | 7.75 mm | 0.305 in | 3.56 mm | 0.14 in | 6.35 mm | 0.25 in | Steel | Female | Non-Insulated | Nickel | 0.032 in | 0.81 mm | Crimp | Free Hanging (In-Line), Right Angle | Angled - 90°, Flag | 13.5 AWG |
Description
General part information
1217876 Series
0.250" (6.35mm) Quick Connect Female 14 AWG Crimp Connector Non-Insulated
Documents
Technical documentation and resources
No documents available
