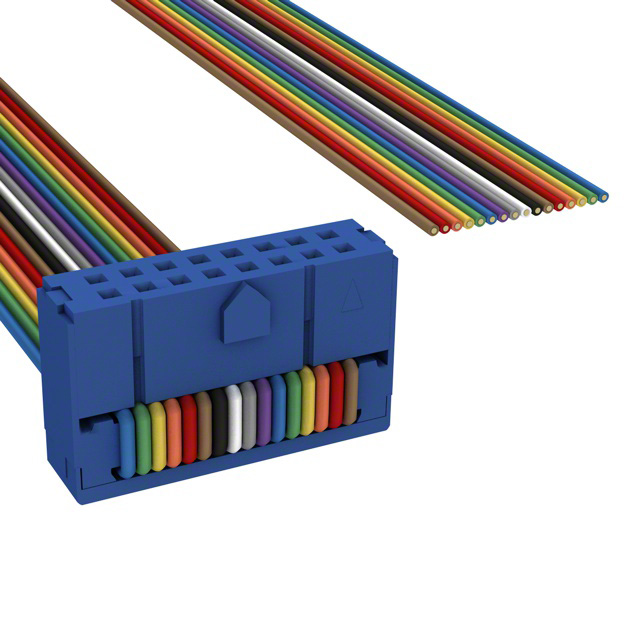

Specification	C1DXG-1636M

Cable Termination	IDC
Color	Multiple, Ribbon
Connector Type	Socket to Cable
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Features	Strain Relief, Polarizing Key
Length	3 ft
Number of Positions	16
Number of Rows	2
Pitch - Cable	0.05 in
Pitch - Connector	0.1 in
Shielding	Unshielded

C1DXG-1 Series

Part	Color	Number of Positions	Pitch - Cable	Contact Finish	Length	Shielding	Connector Type	Features	Pitch - Connector	Cable Termination	Contact Finish Thickness	Number of Rows
CW Industries C1DXG-1636M	Multiple Ribbon	16	0.05 in	Gold	3 ft	Unshielded	Socket to Cable	Polarizing Key Strain Relief	0.1 in	IDC	10 Ąin	2
CW Industries C1DXG-1036G	Gray Ribbon	10	0.05 in	Gold	3 ft	Unshielded	Socket to Cable	Polarizing Key Strain Relief	0.1 in	IDC	10 Ąin	2
CW Industries C1DXG-1036M	Multiple Ribbon	10	0.05 in	Gold	3 ft	Unshielded	Socket to Cable	Polarizing Key Strain Relief	0.1 in	IDC	10 Ąin	2
CW Industries C1DXG-1436G	Gray Ribbon	14	0.05 in	Gold	3 ft	Unshielded	Socket to Cable	Polarizing Key Strain Relief	0.1 in	IDC	10 Ąin	2
CW Industries C1DXG-1436M	Multiple Ribbon	14	0.05 in	Gold	3 ft	Unshielded	Socket to Cable	Polarizing Key Strain Relief	0.1 in	IDC	10 Ąin	2
