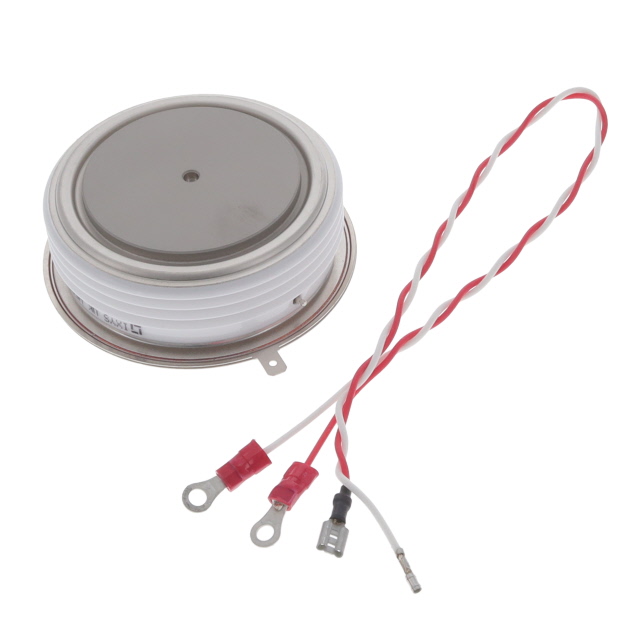

N2600MC160

Active

IXYS

SCR 1.6KV 5200A W70

Search across all available documentation for this part.

Active

IXYS

SCR 1.6KV 5200A W70

Technical Specifications

Parameters and characteristics for this part

Specification	N2600MC160

Current - Gate Trigger (Igt) (Max) [Max]	300 mA
Current - Hold (Ih) (Max) [Max]	1 A
Current - Non Rep. Surge 50, 60Hz (Itsm)	33000 A
Current - Off State (Max) [Max]	100 mA
Current - On State (It (AV)) (Max) [Max]	2600 A
Current - On State (It (RMS)) (Max) [Max]	5200 A
Mounting Type	Clamp On
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	TO-200AC, K-PUK
SCR Type	Standard Recovery
Voltage - Off State	1.6 kV
Voltage - On State (Vtm) (Max) [Max]	2 V

Part	Current - Off State (Max) [Max]	Voltage - On State (Vtm) (Max) [Max]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Current - On State (It (RMS)) (Max) [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm)	Package / Case	SCR Type	Voltage - Off State	Current - On State (It (AV)) (Max) [Max]	Current - Hold (Ih) (Max) [Max]	Current - Gate Trigger (Igt) (Max) [Max]
IXYS N2600MC160	100 mA	2 V	Clamp On	125 °C	-40 °C	5200 A	33000 A	K-PUK TO-200AC	Standard Recovery	1.6 kV	2600 A	1 A	300 mA
IXYS N2600MC180	100 mA	2 V	Clamp On	125 °C	-40 °C	5200 A	33000 A	K-PUK TO-200AC	Standard Recovery	1.8 kV	2600 A	1 A	300 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SCR 1.6 kV 5200 A Standard Recovery Clamp On W70
