SAV8F1BSS344

Active

E-Switch

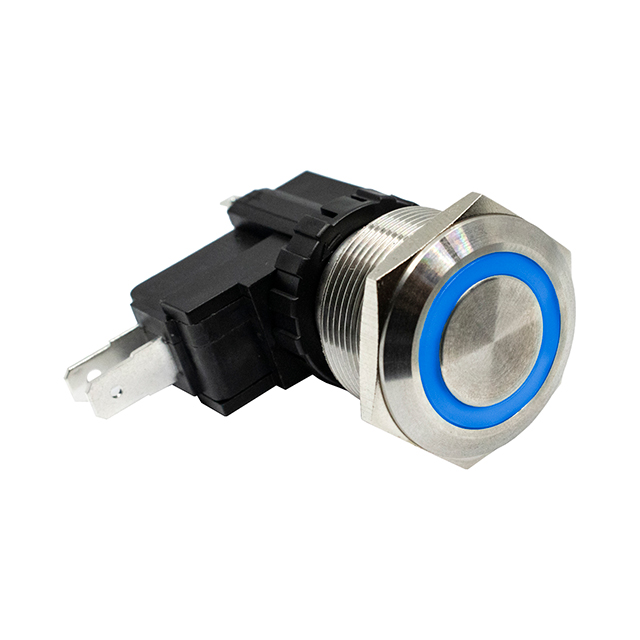

SWITCH PB SPDT 15A 125V

Search across all available documentation for this part.

Active

E-Switch

SWITCH PB SPDT 15A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	SAV8F1BSS344

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPDT
Color - Actuator/Cap	Silver
Current Rating (Amps)	15 A
Electrical Life	10000 Cycles
Illumination Type, Color	LED, Blue
Illumination Voltage (Nominal)	12 VDC
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	25.2 mm
Switch Function	On-Mom
Termination Style	Quick Connect - 0.187" (4.7mm)
Type	Anti-Vandal, Illuminated
Voltage Rating - AC	125 V

Part	Panel Cutout Dimensions [diameter]	Termination Style	Current Rating (Amps)	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Color - Actuator/Cap	Circuit	Illumination Type, Color	Mounting Type	Type	Voltage Rating - AC	Actuator Type	Actuator Marking	Illumination Voltage (Nominal)	Electrical Life
E-Switch SAV8F1BSS344	25.2 mm	Quick Connect - 0.187" (4.7mm)	15 A	On-Mom	-25 °C	85 °C	IP67 - Dust Tight Waterproof	Silver	SPDT	Blue LED	Panel Mount Front	Anti-Vandal Illuminated	125 V	Button Flush Round	No Marking	12 VDC	10000 Cycles
E-Switch SAV8F13SS311	25.2 mm	Quick Connect - 0.187" (4.7mm)	15 A	On-On	-25 °C	85 °C	IP67 - Dust Tight Waterproof	Silver	SPDT	LED Red	Panel Mount Front	Anti-Vandal Illuminated	125 V	Button Flush Round	No Marking	3 VDC	10000 Cycles

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPDT Anti-Vandal, Illuminated Panel Mount, Front
