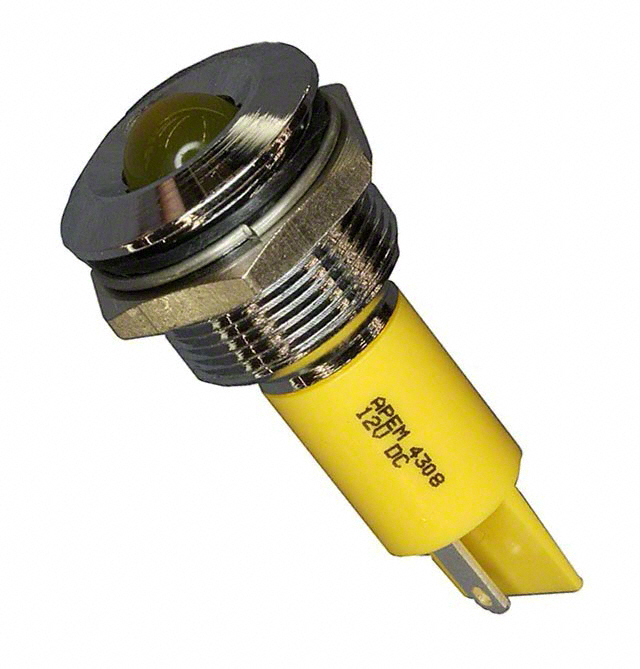

Q19P1CXXY12E
ActiveAPEM
LED INDICATOR 19MM ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
Q19P1CXXY12E
ActiveAPEM
LED INDICATOR 19MM ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | Q19P1CXXY12E |
|---|---|
| Ingress Protection | IP67 |
| Lamp Color | Yellow |
| Lens Color | Yellow |
| Lens Size [diameter] | 10 mm |
| Lens Style | Round with Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 50 mcd |
| Panel Cutout Dimensions [x] | 0.75 " |
| Panel Cutout Dimensions [x] | 19.05 mm |
| Panel Cutout Shape | Round |
| Ratings | DC |
| Termination Style | Quick Connect - 0.110" (2.8mm) |
| Type | LED |
| Viewing Angle | 60 ° |
| Voltage | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
Q19P1CXXY Series
LED Panel Indicator Yellow Diffused 60° 12V 20mA Quick Connect - 0.110" (2.8mm)
