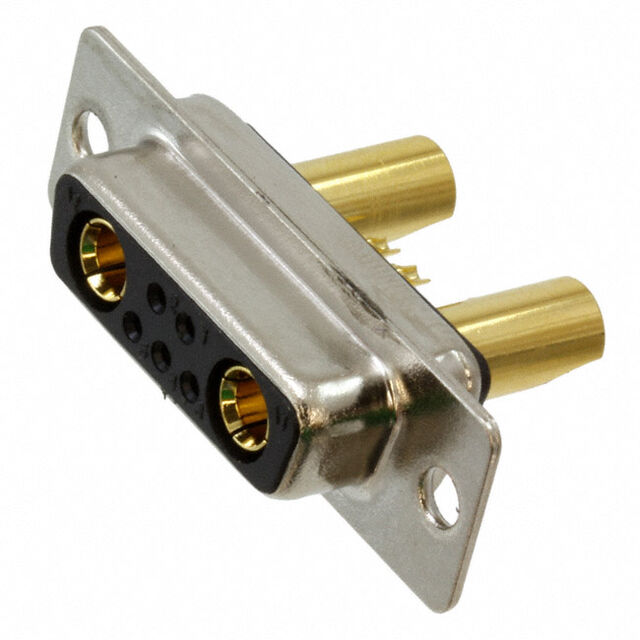

680S7W2203L401

Active

NorComp Inc.

COMBINATION LAYOUT D SUB CONNECTOR, 40 AMP, IP68, SEAL-D 680S SERIES, DA-7W2, RECEPTACLE

Find alt

Alpha

680S7W2203L401

Active

NorComp Inc.

COMBINATION LAYOUT D SUB CONNECTOR, 40 AMP, IP68, SEAL-D 680S SERIES, DA-7W2, RECEPTACLE

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

680S7W2 Series

The SEAL-D 680S series POWER-D solder-cup version D-sub Connectors with machined copper alloy, full gold flash signal and power contacts with glass-filled thermoplastic insulator and nickel-plated, steel shell. It is available in 11 industry standard sizes/positions are 3W3, 5W1, 5W5, 7W2, 9W4, 11W1, 13W3, 13W6, 17W2, 21W1 and 21WA4. Unique sealing method maintains standard D-sub profile allowing for drop in replacement of current POWER-D connectors.

Technical Specifications

Parameters and characteristics for this part

Specification	680S7W2203L401

Color	Black
Connector Layout	DA, A
Connector Style	Combo, D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0
Contact Finish Thickness	Flash
Contact Finish Thickness (string set options)	Flash
Contact Material	Copper Alloy
Contact Type	Signal, Power
Current Rating Options	40A, 5A
Dielectric Material	Polybutylene Terephthalate (PBT)
Finish	Nickel Plated
Flange Feature	Shell (Unthreaded), Housing
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount
Number of Positions (Normal)	5
Number of Positions (Power)	2
Number of Positions (Total)	7
Number of Rows	2
Operating Temperature (Max)	155 °C
Operating Temperature (Min)	-55 °C
Part Code	7W2
Shell Material	Steel
Shell Size	2
Termination	Solder Cup

680S7W2 Series

Part	Connector Type	Features	Number of Positions (Total)	Number of Positions (Normal)	Number of Positions (Power)	Contact Finish	Contact Type	Current Rating Options	Shell Material	Finish	Mounting Type	Flange Feature	Contact Finish Thickness (string set options)	Contact Finish Thickness	Connector Style	Material Flammability Rating	Shell Size	Part Code	Connector Layout	Ingress Protection Description	Ingress Protection IP Rating	Number of Rows	Termination	Operating Temperature (Max)	Operating Temperature (Min)	Color	Dielectric Material	Contact Material
NorComp Inc. 680S7W2103L401	Male Pins Plug	Grounding Indents	7	5	2	Gold	Power Signal	40A 5A	Steel	Nickel Plated	Panel Mount	Housing Shell (Unthreaded)	Flash	Flash	Combo D-Sub	UL94 V-0	2	7W2	A DA	Dust Tight Waterproof	IP67	2	Solder Cup	155 °C	-55 °C	Black	Polybutylene Terephthalate (PBT)	Copper Alloy
NorComp Inc. 680S7W2203L201	Female Sockets Receptacle		7	5	2	Gold	Power Signal	20A 5A	Steel	Nickel Plated	Panel Mount	Housing Shell (Unthreaded)	Flash	Flash	Combo D-Sub	UL94 V-0	2	7W2	A DA	Dust Tight Waterproof	IP67	2	Solder Cup	155 °C	-55 °C	Black	Polybutylene Terephthalate (PBT)	Copper Alloy
NorComp Inc. 680S7W2203L401	Female Sockets Receptacle		7	5	2	Gold	Power Signal	40A 5A	Steel	Nickel Plated	Panel Mount	Housing Shell (Unthreaded)	Flash	Flash	Combo D-Sub	UL94 V-0	2	7W2	A DA	Dust Tight Waterproof	IP67	2	Solder Cup	155 °C	-55 °C	Black	Polybutylene Terephthalate (PBT)	Copper Alloy

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

680S7W2203L401 | Datasheet
