Technical Specifications
Parameters and characteristics for this part
| Specification | TCK207AN,LF |
|---|---|
| Current - Output (Max) [Max] | 2 A |
| Fault Protection | Reverse Current |
| Features | Slew Rate Controlled, Load Discharge |
| Input Type | Non-Inverting |
| Interface | On/Off |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | High Side |
| Output Type | N-Channel |

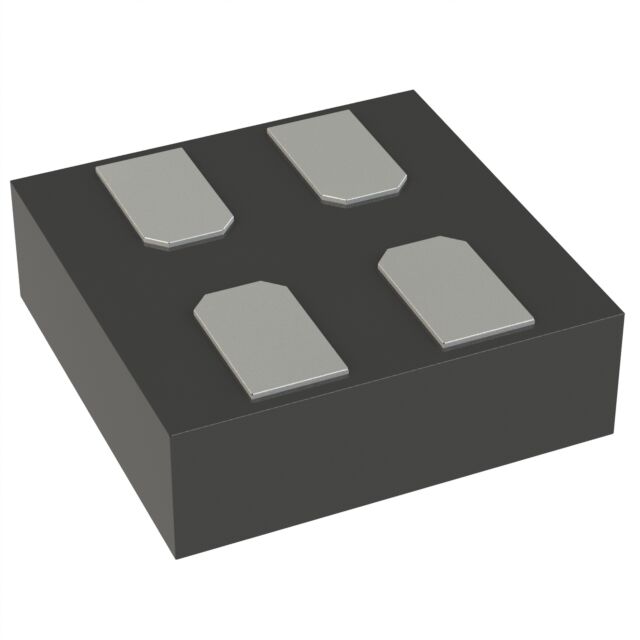

| Package / Case | 4-XFDFN Exposed Pad |
| Ratio - Input:Output [custom] | 1:1 |
| Rds On (Typ) | 21.5 mOhm |
| Supplier Device Package | 4-DFNA (1.2x1.2) |
| Switch Type | General Purpose |
| Voltage - Load [Max] | 3.6 V |
| Voltage - Load [Min] | 0.75 V |
| Voltage - Supply (Vcc/Vdd) | False |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.72 | |
| 10 | $ 0.51 | |||
| 25 | $ 0.46 | |||
| 100 | $ 0.40 | |||
| 250 | $ 0.37 | |||
| 500 | $ 0.36 | |||
| 1000 | $ 0.34 | |||
| 2500 | $ 0.33 | |||
| Digi-Reel® | 1 | $ 0.72 | ||
| 10 | $ 0.51 | |||
| 25 | $ 0.46 | |||
| 100 | $ 0.40 | |||
| 250 | $ 0.37 | |||
| 500 | $ 0.36 | |||
| 1000 | $ 0.34 | |||
| 2500 | $ 0.33 | |||
| Tape & Reel (TR) | 5000 | $ 0.32 | ||
| 10000 | $ 0.31 | |||
| 15000 | $ 0.31 | |||
| 25000 | $ 0.31 | |||
Description
General part information
TCK207 Series
Power Switch/Driver 1:1 N-Channel 2A 4-DFNA (1.2x1.2)
