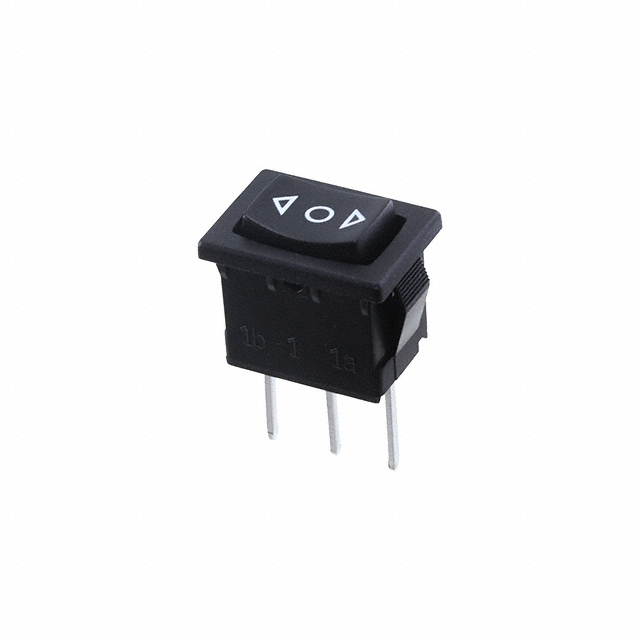

R1966IBLKBLKHP

Active

E-Switch

SWITCH ROCKER SPDT 15A 125V

Deep-Dive with AI

Search across all available documentation for this part.

R1966IBLKBLKHP

Active

E-Switch

SWITCH ROCKER SPDT 15A 125V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R1966IBLKBLKHP

Actuator Marking	Triangular Arrows with O
Actuator Type	Concave (Curved)
Circuit	SPDT
Color - Actuator/Cap	Black
Current Rating (Amps)	15 A
Electrical Life	10000 Cycles
Mechanical Life	30000 Steps
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	-30 ░C
Switch Function	Mom-Off-Mom
Termination Style	PC Pin
Voltage Rating - AC	125 V

R1966IBL Series

Part	Mounting Type	Color - Actuator/Cap	Actuator Type	Electrical Life	Switch Function	Mechanical Life	Current Rating (Amps)	Termination Style	Voltage Rating - AC	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Marking
E-Switch R1966IBLKWHTES	Panel Mount Snap-In	White	Concave (Curved)	10000 Cycles	Mom-Off-Mom	30000 Steps	15 A	Solder Lug	125 V	SPDT	65 °C	-30 ░C	No Marking
E-Switch R1966IBLKBLKAF	Panel Mount Snap-In	Black	Concave (Curved)	10000 Cycles	Mom-Off-Mom	30000 Steps	15 A	Quick Connect - 0.187" (4.7mm)	125 V	SPDT	65 °C	-30 ░C	Dot
E-Switch R1966IBLKBLKHR	Panel Mount Right Angle Snap-In	Black	Concave (Curved)	10000 Cycles	Mom-Off-Mom	30000 Steps	15 A	PC Pin	125 V	SPDT	65 °C	-30 ░C	Triangular Arrows with O
E-Switch R1966IBLKBLKES	Panel Mount Snap-In	Black	Concave (Curved)	10000 Cycles	Mom-Off-Mom	30000 Steps	15 A	Solder Lug	125 V	SPDT	65 °C	-30 ░C	No Marking
E-Switch R1966IBLKBLKEP	Panel Mount Snap-In	Black	Concave (Curved)	10000 Cycles	Mom-Off-Mom	30000 Steps	15 A	PC Pin	125 V	SPDT	65 °C	-30 ░C	No Marking
E-Switch R1966IBLKBLKGS	Panel Mount Snap-In	Black	Concave (Curved)	10000 Cycles	Mom-Off-Mom	30000 Steps	15 A	Solder Lug	125 V	SPDT	65 °C	-30 ░C	O I
E-Switch R1966IBLKBLKHP	Panel Mount Snap-In	Black	Concave (Curved)	10000 Cycles	Mom-Off-Mom	30000 Steps	15 A	PC Pin	125 V	SPDT	65 °C	-30 ░C	Triangular Arrows with O
E-Switch R1966IBLKREDEF	Panel Mount Snap-In	Red	Concave (Curved)	10000 Cycles	Mom-Off-Mom	30000 Steps	15 A	Quick Connect - 0.187" (4.7mm)	125 V	SPDT	65 °C	-30 ░C	No Marking
E-Switch R1966IBLKBLKHS	Panel Mount Snap-In	Black	Concave (Curved)	10000 Cycles	Mom-Off-Mom	30000 Steps	15 A	Solder Lug	125 V	SPDT	65 °C	-30 ░C	Triangular Arrows with O

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.68
		10	$ 2.31
		25	$ 2.18
		50	$ 2.09
		150	$ 1.94
		300	$ 1.86
		600	$ 1.78
		1050	$ 1.71

Description

General part information

R1966IBL Series

Rocker Switch SPDT 15A (AC) 125 V Panel Mount, Snap-In

Documents

Technical documentation and resources

No documents available
