325-102-520-201

Active

EDAC Inc.

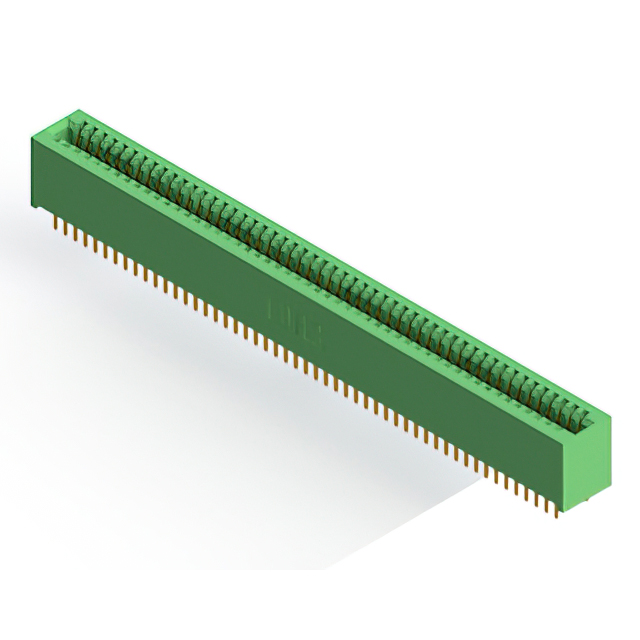

CARD EDGE CONNECTOR, DUAL SIDE, 3.18 MM, 102 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN

325-102-520-201

Active

EDAC Inc.

CARD EDGE CONNECTOR, DUAL SIDE, 3.18 MM, 102 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDatasheet Drawing EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	325-102-520-201

Card Thickness	3.18 mm
Card Thickness	0.125 in
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole
Number of Positions	102
Number of Positions/Bay/Row [custom]	51
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Solder
Termination Rows	2

325-102 Series

Part	Card Type	Contact Type	Contact Material	Color	Number of Rows	Termination	Flange Feature	Contact Finish	Number of Positions/Bay/Row [custom]	Read Out	Mounting Type	Number of Positions	Termination Rows	Material - Insulation	Pitch [x]	Pitch [x]	Gender	Card Thickness	Card Thickness	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 325-102-540-207	Non Specified - Dual Edge	Cantilever	Copper Alloy	Green	2	Wire Wrap	Flush Mount M3 Threaded Insert Top Opening	Gold	51	Dual	Through Hole	102	2	Diallyl Phthalate (DAP)	2.54 mm	0.1 in	Female	3.18 mm	0.125 in	10 Áin	0.25 Ám	125 °C	-65 ░C
EDAC Inc. 325-102-500-208	Non Specified - Dual Edge	Cantilever	Copper Alloy	Green	2	Solder Eyelet(s)	4-40 Flush Mount Threaded Insert Top Opening	Gold	51	Dual	Through Hole	102	2	Diallyl Phthalate (DAP)	2.54 mm	0.1 in	Female	3.18 mm	0.125 in	10 Áin	0.25 Ám	125 °C	-65 ░C
EDAC Inc. 325-102-540-209	Non Specified - Dual Edge	Cantilever	Copper Alloy	Green	2	Wire Wrap	Flush Mount Top Opening Unthreaded	Gold	51	Dual	Through Hole	102	2	Diallyl Phthalate (DAP)	2.54 mm	0.1 in	Female	3.18 mm	0.125 in	10 Áin	0.25 Ám	125 °C	-65 ░C	0.16 in	4.06 mm
EDAC Inc. 325-102-520-201	Non Specified - Dual Edge	Cantilever	Copper Alloy	Green	2	Solder		Gold	51	Dual	Through Hole	102	2	Diallyl Phthalate (DAP)	2.54 mm	0.1 in	Female	3.18 mm	0.125 in	10 Áin	0.25 Ám	125 °C	-65 ░C
EDAC Inc. 325-102-540-201	Non Specified - Dual Edge	Cantilever	Copper Alloy	Green	2	Wire Wrap		Gold	51	Dual	Through Hole	102	2	Diallyl Phthalate (DAP)	2.54 mm	0.1 in	Female	3.18 mm	0.125 in	10 Áin	0.25 Ám	125 °C	-65 ░C
EDAC Inc. 325-102-520-208	Non Specified - Dual Edge	Cantilever	Copper Alloy	Green	2	Solder	4-40 Flush Mount Threaded Insert Top Opening	Gold	51	Dual	Through Hole	102	2	Diallyl Phthalate (DAP)	2.54 mm	0.1 in	Female	3.18 mm	0.125 in	10 Áin	0.25 Ám	125 °C	-65 ░C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 15.43
Newark	Each	1	$ 15.50
		100	$ 11.33
		250	$ 9.17
		500	$ 7.67
		1000	$ 5.78

Description

General part information

325-102 Series

102 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
