PIC-S-103

Active

3G Shielding Specialties LP

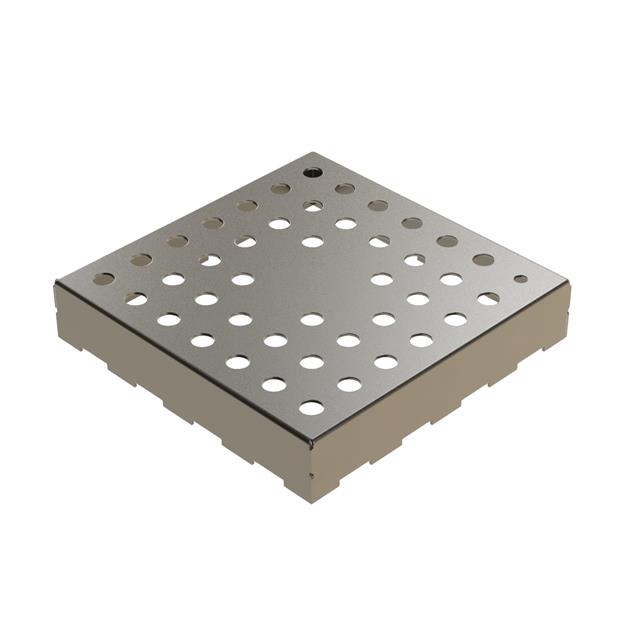

RF SHIELD, 1.032"X1.032"

Search across all available documentation for this part.

Active

3G Shielding Specialties LP

RF SHIELD, 1.032"X1.032"

Technical Specifications

Parameters and characteristics for this part

Part	Type	Width - Overall [x]	Width - Overall [x]	Mounting Type	Length - Overall	Length - Overall [x]	Height - Overall [z]	Height - Overall [z]	Ventilation	Length - Overall [x]	Width - Overall [x]	Width - Overall [y]	Width - Overall [y]	Height - Overall [z]	Width - Overall
3G Shielding Specialties LP PIC-S-205C	Cover	38.1 mm	1.5 "	Snap Fit	25.4 mm	1 in	6 mm	0.236 in	Vent Holes in Pattern
3G Shielding Specialties LP PIC-S-202F	Frame		16.51 mm	Solder		0.65 "	3.61 mm	0.142 "		16.51 mm	0.65 in
3G Shielding Specialties LP PIC-S-205F	Frame	38.1 mm	1.5 "	Solder	25.4 mm	1 in	6 mm	0.236 in
3G Shielding Specialties LP PIC-S-209C	Cover		18.5 mm	Snap Fit		1.156 in	7 mm	0.276 in	Vent Holes in Pattern	29.36 mm	0.728 in
3G Shielding Specialties LP PIC-S-201C	Cover		13.67 mm	Snap Fit		0.5 in	2.54 mm	0.1 in	Vent Holes in Pattern	12.7 mm	0.538 "
3G Shielding Specialties LP PIC-S-207C	Cover			Snap Fit		1.747 in	0.384 in		Vent Holes in Pattern	44.37 mm		44.37 mm	1.747 in	9.75 mm
3G Shielding Specialties LP PIC-S-108			39.6 mm	Surface Mount		1.559 in	7 mm	0.276 in	Non-Vented	39.6 mm	1.559 in
3G Shielding Specialties LP PIC-S-106			36.83 mm	Solder		1.326 in	5.08 mm	0.2 in	Vent Holes in Pattern	33.68 mm	1.45 in
3G Shielding Specialties LP PIC-S-203F	Frame			Solder	26.21 mm	1.032 in	5.08 mm	0.2 in			1.032 in				26.21 mm
3G Shielding Specialties LP PIC-S-105		38.1 mm	1.5 "	Solder	25.4 mm	1 in	6 mm	0.236 in	Vent Holes in Pattern

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF Shield CAN 1.032" (26.21mm) X 1.032" (26.21mm) Vent Holes in Pattern Solder
