PIC-S-201C

Active

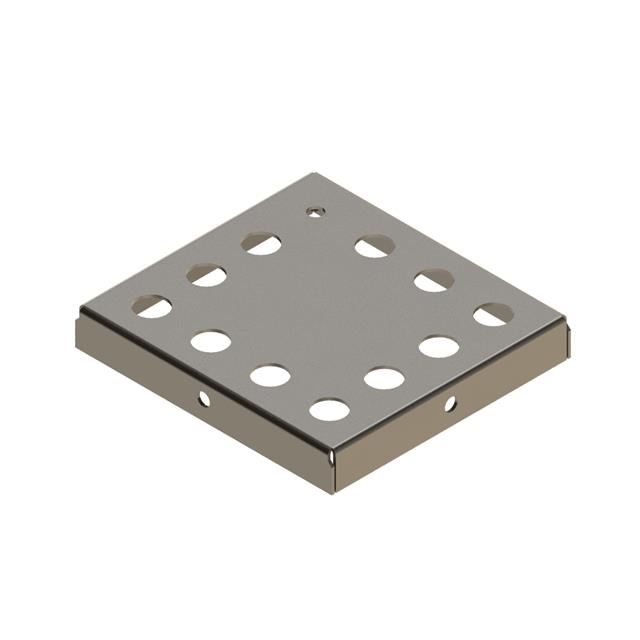

RF SHIELD COVER, 0.5"X0.538"

Active

RF SHIELD COVER, 0.5"X0.538"

Description

General part information

RF Shield Cover 0.538" (13.67mm) X 0.500" (12.70mm) Vent Holes in Pattern Snap Fit

Parameters and characteristics for this part

PIC-S Series

Part	Ventilation	Length - Overall	Width - Overall	Height - Overall	Mounting Type	Type
3G Shielding Specialties LP PIC-S-205C	Vent Holes in Pattern	1 in	1.5 in	0.236 in	Snap Fit	Cover
3G Shielding Specialties LP PIC-S-202F		0.65 in	0.65 in	0.142 in	Solder	Frame
3G Shielding Specialties LP PIC-S-205F		1 in	1.5 in	0.236 in	Solder	Frame
3G Shielding Specialties LP PIC-S-209C	Vent Holes in Pattern	1.156 in	0.728 in	0.276 in	Snap Fit	Cover
3G Shielding Specialties LP PIC-S-109	Non-Vented	1.156 in	0.728 in	0.276 in	Surface Mount	CAN
3G Shielding Specialties LP PIC-S-104	Vent Holes in Pattern	1.26 in	1.26 in	0.236 in	Solder	CAN
3G Shielding Specialties LP PIC-S-201C	Vent Holes in Pattern	0.5 in	0.538 in	0.1 in	Snap Fit	Cover
3G Shielding Specialties LP PIC-S-207C	Vent Holes in Pattern	1.747 in	1.747 in	0.384 in	Snap Fit	Cover
3G Shielding Specialties LP PIC-S-108	Non-Vented	1.559 in	1.559 in	0.276 in	Surface Mount	CAN
3G Shielding Specialties LP PIC-S-106	Vent Holes in Pattern	1.326 in	1.45 in	0.2 in	Solder	CAN
