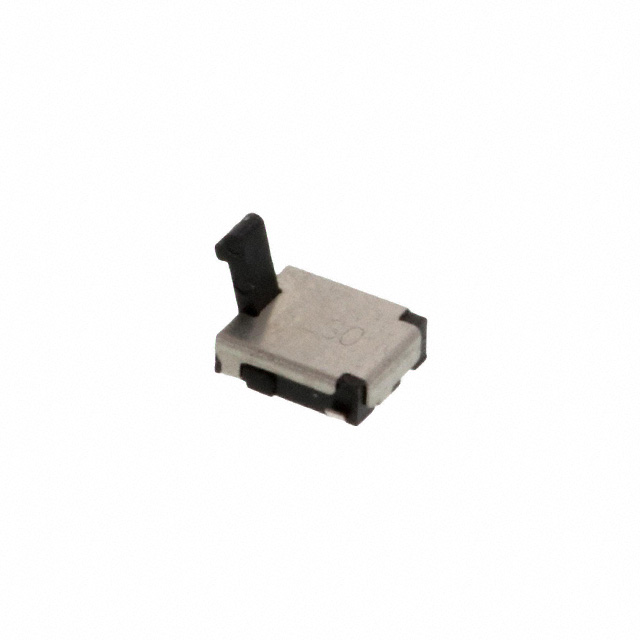

JJDVDUJ305NONMRQTR

Active

TE Connectivity Raychem Cable Protection

SWITCH DETECTOR SPST-NO 0.01A 5V

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

SWITCH DETECTOR SPST-NO 0.01A 5V

Technical Specifications

Parameters and characteristics for this part

Part	Pretravel	Pretravel	Electrical Life	Features	Termination Style	Mounting Type	Voltage Rating - DC	Operating Force	Current Rating (Amps)	Switch Function	Circuit	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Operating Position	Operating Position	Operating Position [x]	Operating Position [x]
TE Connectivity Raychem Cable Protection JJDVDUG305NOPMRQTR	0.015 in	0.4 mm	50000 Cycles	Board Guide	Gull Wing	Surface Mount	5 V	40 gf	10 mA	Off-Mom	SPST-NO	Angled Toggle (Detector)	-10 °C	60 °C	0.104 in	2.65 mm
TE Connectivity Raychem Cable Protection JJDVDUJ305NONMRQTR	0.015 in	0.4 mm	50000 Cycles		J Lead	Surface Mount	5 V	40 gf	10 mA	Off-Mom	SPST-NO	Angled Toggle (Detector)	-10 °C	60 °C	0.104 in	2.65 mm
TE Connectivity Raychem Cable Protection JJDVDUG305NONMRQTR	0.015 in	0.4 mm	50000 Cycles		Gull Wing	Surface Mount	5 V	40 gf	10 mA	Off-Mom	SPST-NO	Angled Toggle (Detector)	-10 °C	60 °C	0.104 in	2.65 mm
TE Connectivity Raychem Cable Protection JJDVDUJ314NCPMRTR	0.065 in	1.65 mm	50000 Cycles	Board Guide	J Lead	Surface Mount	5 V	35 gf	1 mA	On-Mom	SPST-NC	Angled Toggle (Detector)	-40 °C	85 °C			1.5 mm	0.059 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Switch SPST-NO Surface Mount
