S2M-105-02-L-D

Active

Samtec Inc.

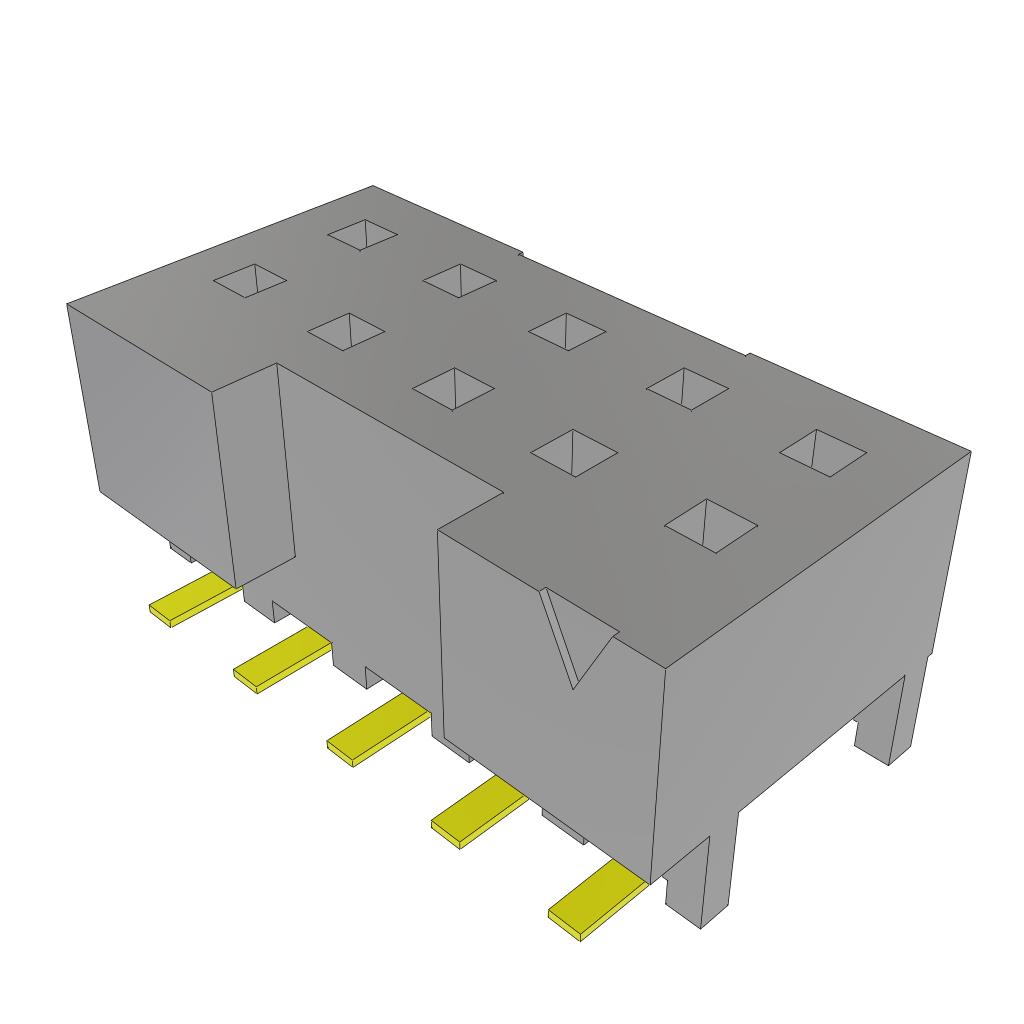

2.00 MM TIGER EYE PCB MOUNT SOC

Search across all available documentation for this part.

Active

Samtec Inc.

2.00 MM TIGER EYE PCB MOUNT SOC

Technical Specifications

Parameters and characteristics for this part

Specification	S2M-105-02-L-D

Connector Type	Socket
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Material	Beryllium Copper
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	2.6 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	4.51 mm
Insulation Height	0.178 in
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Surface Mount
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Style	Board to Board, Cable
Termination	Solder

Part	Insulation Material	Number of Positions Loaded	Style	Connector Type	Contact Shape	Termination	Contact Finish - Post	Insulation Color	Insulation Height	Insulation Height	Contact Finish - Mating	Pitch - Mating [x]	Pitch - Mating [x]	Number of Positions	Contact Type	Contact Material	Row Spacing - Mating	Row Spacing - Mating	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Fastening Type	Contact Length - Post [x]	Contact Length - Post [x]
Samtec Inc. S2M-105-02-F-D-K	Liquid Crystal Polymer (LCP)	All	Board to Board Cable	Socket	Square	Solder	Tin	Black	4.51 mm	0.178 in	Gold	0.079 in	2 mm	10	Female Socket	Beryllium Copper	0.079 in	2 mm	2.6 A	-55 °C	125 °C	Surface Mount	3 µin	0.076 µm	2	Push-Pull
Samtec Inc. S2M-105-02-F-D	Liquid Crystal Polymer (LCP)	All	Board to Board Cable	Socket	Square	Solder	Tin	Black	4.51 mm	0.178 in	Gold	0.079 in	2 mm	10	Female Socket	Beryllium Copper	0.079 in	2 mm	2.6 A	-55 °C	125 °C	Surface Mount	3 µin	0.076 µm	2	Push-Pull
Samtec Inc. S2M-105-02-L-D	Liquid Crystal Polymer (LCP)	All	Board to Board Cable	Socket	Square	Solder	Tin	Black	4.51 mm	0.178 in	Gold	0.079 in	2 mm	10	Female Socket	Beryllium Copper	0.079 in	2 mm	2.6 A	-55 °C	125 °C	Surface Mount	10 çin	0.25 çm	2	Push-Pull
Samtec Inc. S2M-105-01-F-D	Liquid Crystal Polymer (LCP)	All	Board to Board Cable	Socket	Square	Solder	Tin	Black	4.51 mm	0.178 in	Gold	0.079 in	2 mm	10	Female Socket	Beryllium Copper	0.079 in	2 mm	2.6 A	-55 °C	125 °C	Through Hole	3 µin	0.076 µm	2	Push-Pull	2.08 mm	0.082 "
