PW-3090 Series

Part	Size / Dimension Height	Size / Dimension Length	Size / Dimension Width	DC Voltage - Input (Max)	Current - Output (Max)	DC Voltage - Input (Min)	Approval Agency	Operating Temperature (Max)	Operating Temperature (Min)	Applications	Voltage - Output 1	Efficiency	Power (Watts)	Input Type	Voltage - Isolation	Features	Number of Outputs	Voltage - Output 2

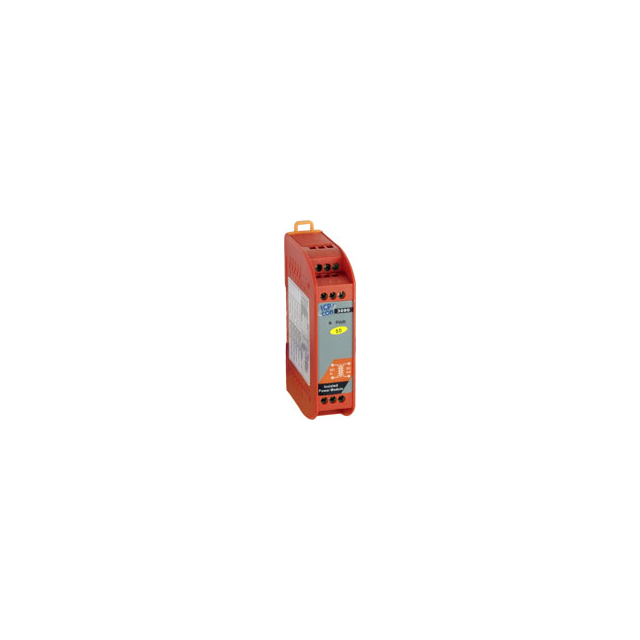

ICP DAS USA INC PW-3090-24S-R	4.49 in	2.76 in	0.98 in	36 V	400 mA	18 V	CE FCC	70 °C	-25 °C	ITE (Commercial)	24 V	83 %	9.6 W	DC	1000 Vrms	Adjustable Output	1
ICP DAS USA INC PW-3090-5S-R	4.49 in	2.76 in	0.98 in	36 V	2 A	18 V	CE FCC	70 °C	-25 °C	ITE (Commercial)	5 V	83 %	10 W	DC	1000 Vrms	Adjustable Output	1
ICP DAS USA INC PW-3090-5D-R	4.49 in	2.76 in	0.98 in	36 V	1 A	18 V	CE FCC	70 °C	-25 °C	ITE (Commercial)	5 V	83 %	10 W	DC	1000 Vrms	Adjustable Output	2	-5 V
ICP DAS USA INC PW-3090-15D-R	4.49 in	2.76 in	0.98 in	36 V	300 mA	18 V	CE FCC	70 °C	-25 °C	ITE (Commercial)	15 V	83 %	9 W	DC	1000 Vrms	Adjustable Output	2	-15 V
ICP DAS USA INC PW-3090-12S-R	4.49 in	2.76 in	0.98 in	36 V	800 mA	18 V	CE FCC	70 °C	-25 °C	ITE (Commercial)	12 V	83 %	9.6 W	DC	1000 Vrms	Adjustable Output	1
ICP DAS USA INC PW-3090-4824S-10	4.49 in	2.76 in	0.98 in	36 V		18 V	CE FCC	70 °C	-25 °C	ITE (Commercial)		83 %		DC	1000 Vrms	Adjustable Output	1
