Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | X-NUCLEO-LED16A1 | X-NUCLEO-LED16A1 Series |
|---|---|---|
| - | - | |
| Contents | Board(s) | Board(s) |
| Function | LED Driver | LED Driver |
| Platform | Nucleo | Nucleo |
| Type | Power Management | Power Management |
| Utilized IC / Part | LED1642GW | LED1642GW |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 19.95 | |
X-NUCLEO-LED16A1 Series
16 channel LED driver expansion board based on LED1642GW for STM32 Nucleo
| Part | Platform | Utilized IC / Part | Type | Function | Contents |
|---|---|---|---|---|---|
STMicroelectronics X-NUCLEO-LED16A1 | Nucleo | LED1642GW | Power Management | LED Driver | Board(s) |
STMicroelectronics X-NUCLEO-LED16A1 |
Description
General part information
X-NUCLEO-LED16A1 Series

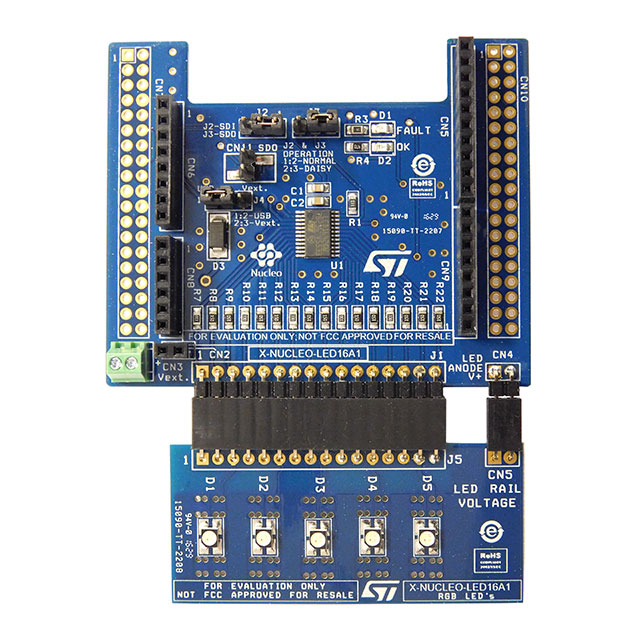

The X-NUCLEO-LED16A1 is an STM32 Nucleo expansion board designed to provide an application for the 16 channel LED driver LED1642GW. Multiple drivers can also be cascaded by coupling X-NUCLEO-LED16A1 expansion boards.
Depending upon the end application, RGB or single color LEDs can be connected to the board. Separate brightness control is possible for each channel.
It is compatible with the STM32 Nucleo board family and equipped the Arduino™ UNO R3 connector layout.
