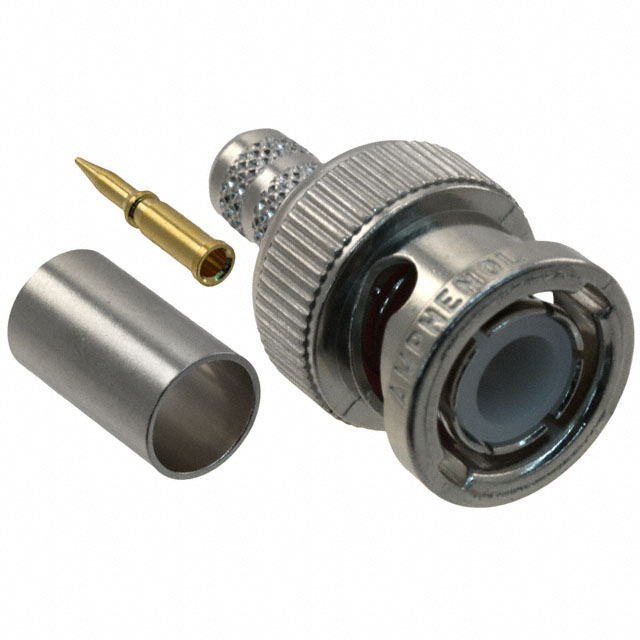

031-5999-RFX

Active

AMPHENOL RF

CONN BNC PLUG STR 50 OHM CRIMP

Search across all available documentation for this part.

Active

AMPHENOL RF

CONN BNC PLUG STR 50 OHM CRIMP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	031-5999-RFX	031-59 Series

Body Finish	Nickel	Nickel
Body Material	Brass	Brass
Cable Group	302, 9A, RG-8, 213, 9B, 225, 8A, 87, 214, 9, 393	58C, 9907, 58B, LMR-195, 58A, 303, 141, Belden B7806A, RG-58, 302, 9A, RG-8, 213, 9B, 225, 8A, 87, 214, 9, 393, LMR-400, Belden 9913, Belden 9914
Center Contact Material	Brass	Brass
Center Contact Plating	Gold	Gold
Connector Style	BNC	BNC
Connector Type	Male Pin, Plug	Male Pin, Plug
Contact Termination	Crimp	Solder, Crimp
Dielectric Material	Polyoxymethylene (POM) Acetal	Polytetrafluoroethylene (PTFE), Polyoxymethylene (POM) Acetal
Fastening Type	Bayonet Lock	Bayonet Lock
Frequency - Max [Max]	4 GHz	4 GHz
Housing Color	Silver	Silver
Impedance	50 Ohms	50 Ohms
Includes	1 Ferrule, 1 Contact, 1 Connector	1 Connector, 1 Ferrule, 1 End Cap, 1 Contact
Insertion Loss	0.2 dB	0.2 dB
Mating Cycles	500	500
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line), Right Angle
Number of Ports	1	1
Operating Temperature [Max]	165 °C	165 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Shield Termination	Crimp	Crimp
Voltage Rating	500 V	500 V

CONN BNC PLUG R/A 50 OHM SOLDER

Part	Body Finish	Frequency - Max [Max]	Contact Termination	Fastening Type	Housing Color	Impedance	Center Contact Plating	Center Contact Material	Number of Ports	Includes	Insertion Loss	Voltage Rating	Connector Type	Connector Style	Shield Termination	Body Material	Mating Cycles	Cable Group	Dielectric Material	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]
AMPHENOL RF 031-5911-RFX	Nickel	4 GHz	Solder	Bayonet Lock	Silver	50 Ohms	Gold	Brass	1	1 Connector, 1 End Cap, 1 Ferrule	0.2 dB	500 V	Male Pin, Plug	BNC	Crimp	Brass	500	141, 303, 58A, 58B, 58C, 9907, Belden B7806A, LMR-195, RG-58	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line), Right Angle	-65 ░C	165 °C
AMPHENOL RF 031-5999-RFX	Nickel	4 GHz	Crimp	Bayonet Lock	Silver	50 Ohms	Gold	Brass	1	1 Connector, 1 Contact, 1 Ferrule	0.2 dB	500 V	Male Pin, Plug	BNC	Crimp	Brass	500	213, 214, 225, 302, 393, 87, 8A, 9, 9A, 9B, RG-8	Polyoxymethylene (POM) Acetal	Free Hanging (In-Line)	-65 ░C	165 °C
AMPHENOL RF 031-5998-RFX	Nickel	4 GHz	Crimp	Bayonet Lock	Silver	50 Ohms	Gold	Brass	1	1 Connector, 1 Contact, 1 Ferrule	0.2 dB	500 V	Male Pin, Plug	BNC	Crimp	Brass	500	Belden 9913, Belden 9914, LMR-400	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	-65 ░C	165 °C
