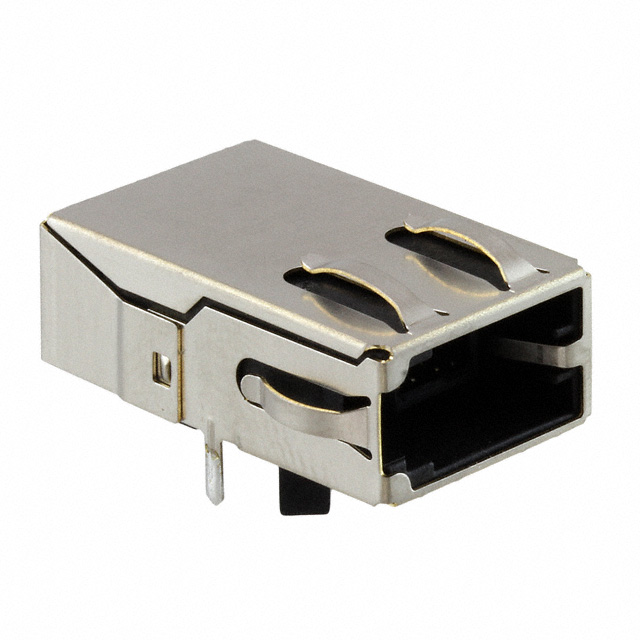

RJP5-10-0004

Active

BEL MAGNETIC SOLUTIONS

CONN MOD JACK 8P8C R/A SHIELDED

Search across all available documentation for this part.

Active

BEL MAGNETIC SOLUTIONS

CONN MOD JACK 8P8C R/A SHIELDED

Technical Specifications

Parameters and characteristics for this part

Specification	RJP5-10-0004

Connector Type	High Density, Jack
LED Color	Does Not Contain LED
Mounting Type	Through Hole
Number of Ports	1
Number of Positions/Contacts	8p8c (RJ Point Five, Ethernet)
Number of Rows	1
Orientation	90 °
Ratings	Cat5e
Shielding	Shielded, EMI Finger
Tab Direction	Side
Termination	Solder

Part	Number of Rows	Ratings	Termination	LED Color	Number of Positions/Contacts	Orientation	Shielding	Mounting Type	Connector Type	Tab Direction	Number of Ports
BEL MAGNETIC SOLUTIONS RJP5-10-0004	1	Cat5e	Solder	Does Not Contain LED	8p8c (RJ Point Five Ethernet)	90 °	Shielded EMI Finger	Through Hole	High Density Jack	Side	1
BEL MAGNETIC SOLUTIONS RJP5-10-0003	1	Cat5e	Solder	Does Not Contain LED	8p8c (RJ Point Five Ethernet)	90 °	Shielded EMI Finger	Through Hole	High Density Jack	Side	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Jack Modular Connector 8p8c (RJ Point Five, Ethernet) 90° Angle (Right) Shielded, EMI Finger Cat5e

Technical documentation and resources

No documents available
