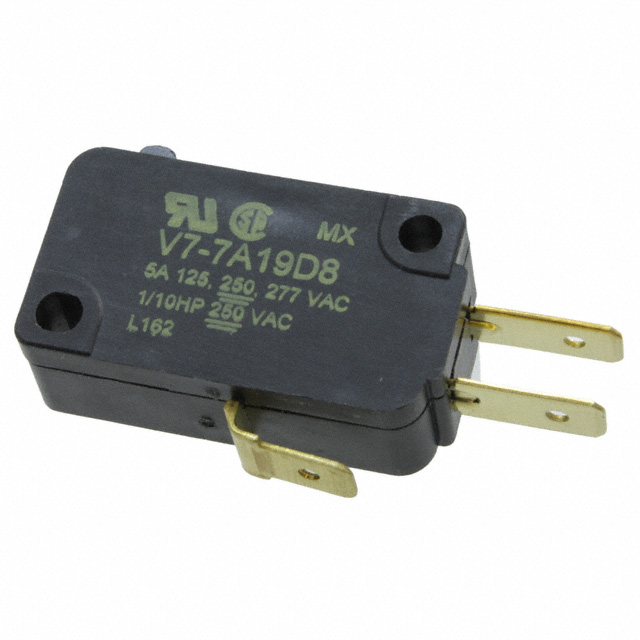

V7-7A19D8

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 5A 125V

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 5A 125V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	V7-7A19D8	V7-7A1 Series

Actuator Type	Round (Pin Plunger)	Round (Pin Plunger), Formed, Lever
Circuit	SPDT	SPDT
Current Rating (Amps)	5 A	5 A
Differential Travel	0.015 in	0.015 in
Differential Travel	0.38 mm	0.38 mm
Electrical Life	100000 Cycles	100000 Cycles
Mechanical Life	10000000 Cycles	10000000 Cycles
Mounting Type	Chassis Mount	Chassis Mount
Operating Force	227 gf	227 - 273 gf
Operating Position	0.579 in	0.579 in
Operating Position	14.7 mm	14.7 mm
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Overtravel	1.27 mm	1.27 mm
Overtravel	0.05 in	0.05 in
Pretravel	0.047 in	0.047 in
Pretravel	1.2 mm	1.2 mm
Release Force	57 gf	57 gf
Switch Function	On-Mom	On-Mom
Termination Style	Quick Connect - 0.187" (4.7mm)	Quick Connect - 0.187" (4.7mm)
Voltage Rating - AC	125 V	125 V

SWITCH SNAP ACTION SPDT 5A 125V

Part	Overtravel	Overtravel	Actuator Type	Operating Position	Operating Position	Mounting Type	Operating Force	Mechanical Life	Current Rating (Amps)	Electrical Life	Circuit	Voltage Rating - AC	Differential Travel	Differential Travel	Operating Temperature [Max]	Operating Temperature [Min]	Release Force	Pretravel	Pretravel	Termination Style	Switch Function
Honeywell Sensing and Productivity Solutions V7-7A19D8	1.27 mm	0.05 in	Round (Pin Plunger)	0.579 in	14.7 mm	Chassis Mount	227 gf	10000000 Cycles	5 A	100000 Cycles	SPDT	125 V	0.015 in	0.38 mm	85 °C	-40 °C	57 gf	0.047 in	1.2 mm	Quick Connect - 0.187" (4.7mm)	On-Mom
Honeywell Sensing and Productivity Solutions V7-7A17D8-374			Formed, Lever			Chassis Mount	273 gf	10000000 Cycles	5 A		SPDT	125 V			85 °C	-40 °C				Quick Connect - 0.187" (4.7mm)	On-Mom

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Switch SPDT Chassis Mount
