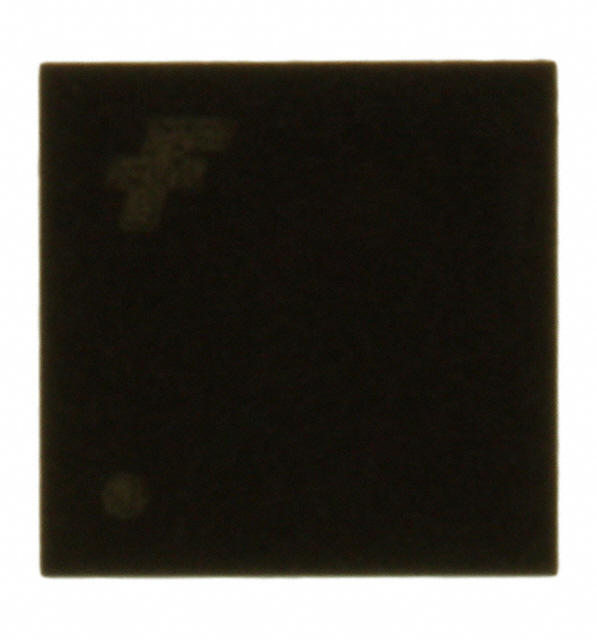

USB1T1105AMHX

Active

ON Semiconductor

IC TRANSCEIVER HALF 1/1 16MHBCC

Search across all available documentation for this part.

Active

ON Semiconductor

IC TRANSCEIVER HALF 1/1 16MHBCC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1/1 Transceiver Half 16-MHBCC (3x3)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	USB1T1105AMHX	USB1T Series

Data Rate	12 Mbps	12 Mbps
Duplex	Half	Half
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	16-WFQFN Exposed Pad	14-WFQFN Exposed Pad, 16-WFQFN Exposed Pad, 14-SOIC
Package / Case	-	0.154 in
Package / Case	-	3.9 mm
Protocol	-	USB 2.0, USB 1.1
Receiver Hysteresis	700 mV	450 - 700 mV
Supplier Device Package	16-MHBCC (3x3)	14-MLP (2.5x2.5), 16-MHBCC (3x3)
Type	Transceiver	Transceiver
Voltage - Supply [Max]	5.5 V	3.6 - 5.5 V
Voltage - Supply [Min]	4 V	3 - 4 V

IC TRANSCEIVER HALF 1/1 14MLP

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Type	Package / Case	Supplier Device Package	Duplex	Mounting Type	Receiver Hysteresis	Data Rate	Protocol	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case [x]	Package / Case [y]
ON Semiconductor USB1T1103MPX	5.5 V	4 V	Transceiver	14-WFQFN Exposed Pad	14-MLP (2.5x2.5)	Half	Surface Mount	450 mV	12 Mbps	USB 2.0	85 °C	-40 °C
ON Semiconductor USB1T1105AMHX	5.5 V	4 V	Transceiver	16-WFQFN Exposed Pad	16-MHBCC (3x3)	Half	Surface Mount	700 mV	12 Mbps		85 °C	-40 °C
ON Semiconductor USB1T1103MHX	5.5 V	4 V	Transceiver	16-WFQFN Exposed Pad	16-MHBCC (3x3)	Half	Surface Mount	450 mV	12 Mbps	USB 2.0	85 °C	-40 °C
ON Semiconductor USB1T1103MHX	5.5 V	4 V	Transceiver	16-WFQFN Exposed Pad	16-MHBCC (3x3)	Half	Surface Mount	450 mV	12 Mbps	USB 2.0	85 °C	-40 °C
ON Semiconductor USB1T11AM	3.6 V	3 V	Transceiver	14-SOIC		Half	Surface Mount		12 Mbps	USB 1.1	85 °C	-40 °C	0.154 in	3.9 mm
