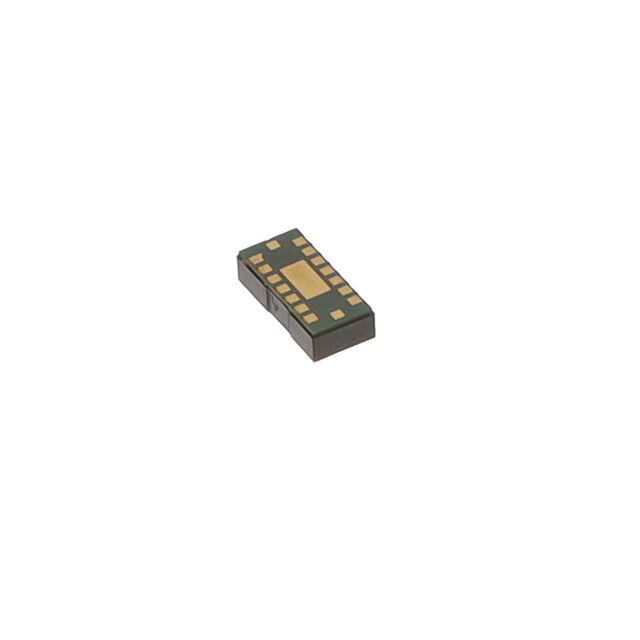

VL53L7CXV0GC/1
ActiveTIME-OF-FLIGHT (TOF) 8X8 MULTIZONE RANGING SENSOR WITH 90 DEGREES FOV
Deep-Dive with AI
Search across all available documentation for this part.
VL53L7CXV0GC/1
ActiveTIME-OF-FLIGHT (TOF) 8X8 MULTIZONE RANGING SENSOR WITH 90 DEGREES FOV
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | VL53L7CXV0GC/1 | VL53L7CX Series |
|---|---|---|
| - | - | |
| Current - Supply | 50 mA | 50 mA |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -30 ░C | -30 ░C |
| Output Type | I2C | I2C |
| Sensing Distance | 350 cm | 350 cm |
| Sensing Distance | 137.8 in | 137.8 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 6.08 | |
| 10 | $ 5.50 | |||
| 25 | $ 5.24 | |||
| 100 | $ 4.55 | |||
| 250 | $ 4.50 | |||
| Digi-Reel® | 1 | $ 6.08 | ||
| 10 | $ 5.50 | |||
| 25 | $ 5.24 | |||
| 100 | $ 4.55 | |||
| 250 | $ 4.50 | |||
| Tape & Reel (TR) | 3600 | $ 4.50 | ||
VL53L7CX Series
Time-of-Flight (ToF) 8x8 multizone ranging sensor with 90 degrees FoV
| Part | Sensing Distance | Sensing Distance | Output Type | Current - Supply | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|
STMicroelectronics VL53L7CXV0GC/1 | ||||||
STMicroelectronics VL53L7CXV0GC/1 | 350 cm | 137.8 in | I2C | 50 mA | -30 ░C | 85 °C |
Description
General part information
VL53L7CX Series
Specially designed for applications requiring an ultrawide FoV, the VL53L7CX Time-of-Flight sensor offers a 90° diagonal FoV. Based on ST's FlightSense technology, the VL53L7CX incorporates an efficient metasurface lens (DOE) placed on the laser emitter enabling the projection of a 60° x 60° square FoV onto the scene.
Its multizone capability provides a matrix of 8x8 zones (64 zones) and can work at fast speeds (60 Hz) up to 350 cm.
Thanks to the autonomous mode with programmable distance threshold combined to the ultrawide FoV, the VL53L7CX is perfect for any application requiring low-power user detection. ST's patented algorithms and innovative module construction allow the VL53L7CX to detect, in each zone, multiple objects within the FoV with depth understanding. ST histogram algorithms ensure cover glass crosstalk immunity beyond 60 cm.
