179-037-413R491

Active

MH Connectors

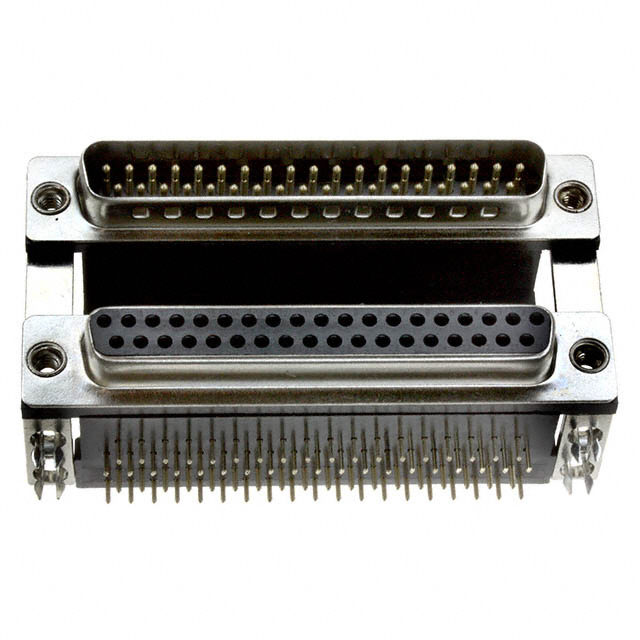

STACKED D SUB CONNECTOR, 179 SERIES, DC, PLUG, 37 CONTACTS, DC, RECEPTACLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN +2

179-037-413R491

Active

MH Connectors

STACKED D SUB CONNECTOR, 179 SERIES, DC, PLUG, 37 CONTACTS, DC, RECEPTACLE

Deep-Dive with AI

DocumentsDatasheet Drawing EN +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	179-037-413R491

Backset Spacing	8.08 mm
Backset Spacing	0.318 "
Color	Black
Connector Style	D-Sub - Stacked
Connector Type	Receptacle, Female Sockets, Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Form	Stamped
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polyamide (PA9T), Nylon 9T
Features	Board Lock, Shielded, Grounding Indents
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	37
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	4
Termination	Solder

179-037 Series

Part	Termination	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]	Dielectric Material	Flange Feature	Connector Type	Number of Positions	Contact Material	Mounting Type	Backset Spacing	Backset Spacing	Number of Rows	Contact Type	Current Rating (Amps)	Contact Form	Shell Size, Connector Layout	Material Flammability Rating	Contact Finish Thickness	Color	Connector Style	Shell Material, Finish	Features
MH Connectors 179-037-512-571	Solder	Gold	105 ░C	-55 °C	Polyester Glass Filled	Female Screwlock (4-40) Mating Side	Receptacle Female Sockets	37	Brass	Board Edge Right Angle Through Hole	8.08 mm	0.318 "	2	Signal	5 A	Stamped	4	UL94 V-0	Flash	Black	D-Sub - Stacked
MH Connectors 179-037-413R571	Solder	Gold	105 ░C	-55 °C	Polyamide (PA9T) Nylon 9T	Female Screwlock (4-40) Mating Side	Plug Male Pins Receptacle Female Sockets	37	Brass	Board Edge Right Angle Through Hole	8.08 mm	0.318 "	2	Signal	5 A	Stamped	4	UL94 V-0	Flash	Black	D-Sub - Stacked	Nickel Plated Steel	Board Lock Grounding Indents Shielded
MH Connectors 179-037-613R571	Solder	Gold	105 ░C	-55 °C	Polyamide (PA9T) Nylon 9T	Female Screwlock (4-40) Mating Side	Male Pins Plug	37	Brass	Board Edge Right Angle Through Hole	8.08 mm	0.318 "	2	Signal	5 A	Stamped	4	UL94 V-0	Flash	Black	D-Sub - Stacked	Nickel Plated Steel	Board Lock Grounding Indents Shielded
MH Connectors 179-037-613R671	Solder	Gold	105 ░C	-55 °C	Polyamide (PA9T) Nylon 9T	Female Screwlock (4-40) Mating Side	Male Pins Plug	37	Brass	Board Edge Right Angle Through Hole	8.08 mm	0.318 "	2	Signal	5 A	Stamped	4	UL94 V-0	Flash	Black	D-Sub - Stacked	Nickel Plated Steel	Board Lock Grounding Indents Shielded
MH Connectors 179-037-313R571	Solder	Gold	105 ░C	-55 °C	Polyamide (PA9T) Nylon 9T	Female Screwlock (4-40) Mating Side	Plug Male Pins Receptacle Female Sockets	37	Brass	Board Edge Right Angle Through Hole	8.08 mm	0.318 "	2	Signal	5 A	Stamped	4	UL94 V-0	Flash	Black	D-Sub - Stacked	Nickel Plated Steel	Board Lock Grounding Indents Shielded
MH Connectors 179-037-413R481	Solder	Gold	105 ░C	-55 °C	Polyamide (PA9T) Nylon 9T	Female Screwlock (4-40) Mating Side	Plug Male Pins Receptacle Female Sockets	37	Brass	Board Edge Right Angle Through Hole	8.08 mm	0.318 "	2	Signal	5 A	Stamped	4	UL94 V-0	Flash	Black	D-Sub - Stacked	Nickel Plated Steel	Grounding Indents Shielded
MH Connectors 179-037-413R491	Solder	Gold	105 ░C	-55 °C	Polyamide (PA9T) Nylon 9T	Housing/Shell (4-40)	Plug Male Pins Receptacle Female Sockets	37	Brass	Board Edge Right Angle Through Hole	8.08 mm	0.318 "	2	Signal	5 A	Stamped	4	UL94 V-0	Flash	Black	D-Sub - Stacked	Nickel Plated Steel	Board Lock Grounding Indents Shielded
MH Connectors 179-037-612-571	Solder	Gold	105 ░C	-55 °C	Polyester Glass Filled	Female Screwlock (4-40) Mating Side	Male Pins Plug	37	Brass	Board Edge Right Angle Through Hole	8.08 mm	0.318 "	2	Signal	5 A	Stamped	4	UL94 V-0	Flash	Black	D-Sub - Stacked		Board Lock Grounding Indents
MH Connectors 179-037-513R491	Solder	Gold	105 ░C	-55 °C	Polyamide (PA9T) Nylon 9T	Housing/Shell (4-40)	Receptacle Female Sockets	37	Brass	Board Edge Right Angle Through Hole	8.08 mm	0.318 "	2	Signal	5 A	Stamped	4	UL94 V-0	Flash	Black	D-Sub - Stacked	Nickel Plated Steel	Board Lock Shielded
MH Connectors 179-037-613R451	Solder	Gold	105 ░C	-55 °C	Polyamide (PA9T) Nylon 9T	Housing/Shell (4-40)	Male Pins Plug	37	Brass	Board Edge Right Angle Through Hole	8.08 mm	0.318 "	2	Signal	5 A	Stamped	4	UL94 V-0	Flash	Black	D-Sub - Stacked	Nickel Plated Steel	Grounding Indents Shielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	240	$ 12.39
Newark	Each	100	$ 15.33
		500	$ 13.04
		1000	$ 11.99
		5000	$ 11.72

Description

General part information

179-037 Series

37, 37 Position D-Sub - Stacked Plug, Male Pins; Receptacle, Female Sockets Connector
