3115-1-00-15-00-00-08-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC .025DIA GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3115-1-00-15-00-00-08-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC .025DIA GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3115-1-00-15-00-00-08-0 |
|---|---|
| Board Thickness | 0.031 in |
| Board Thickness | 0.79 mm |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Brass Alloy |
| Flange Diameter [diameter] | 0.05 in |
| Flange Diameter [diameter] | 1.27 mm |
| Insulation | Non-Insulated |
| Length - Above Flange [x] | 7.62 mm |
| Length - Above Flange [x] | 0.3 " |
| Length - Below Flange [x] | 1.3 mm |
| Length - Below Flange [x] | 0.051 in |
| Length - Overall | 9.42 mm |
| Length - Overall | 0.371 in |
| Mounting Hole Diameter [diameter] | 0.035 in |
| Mounting Hole Diameter [diameter] | 0.89 mm |
| Mounting Type | Through Hole |
| Pin Size - Above Flange [diameter] | 0.025 in |
| Pin Size - Above Flange [diameter] | 0.64 mm |
| Terminal Style | Single End |
| Terminal Type | PC Pin |
| Termination | Swage |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.84 | |
| 10 | $ 0.71 | |||
| 25 | $ 0.68 | |||
| 50 | $ 0.66 | |||
| 100 | $ 0.64 | |||
| 250 | $ 0.58 | |||
| 500 | $ 0.52 | |||
| 1000 | $ 0.46 | |||
| 3000 | $ 0.42 | |||
Description
General part information
3115-1 Series

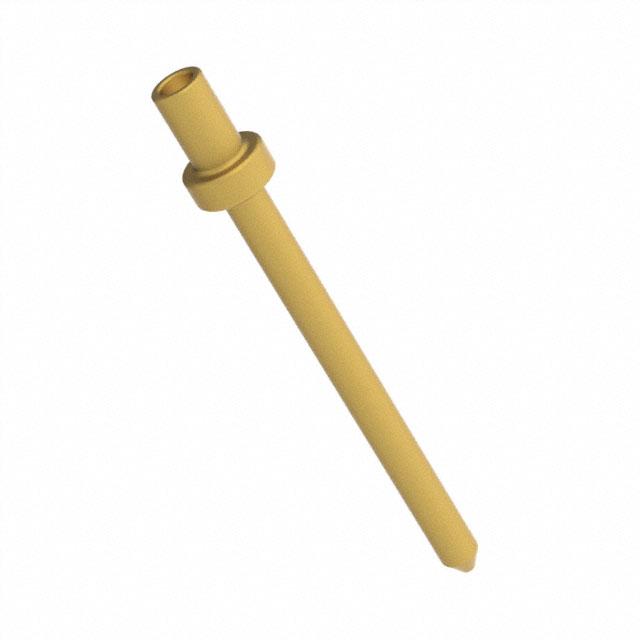

PC Pin Terminal Connector Through Hole Gold 0.025" (0.64mm) Dia
