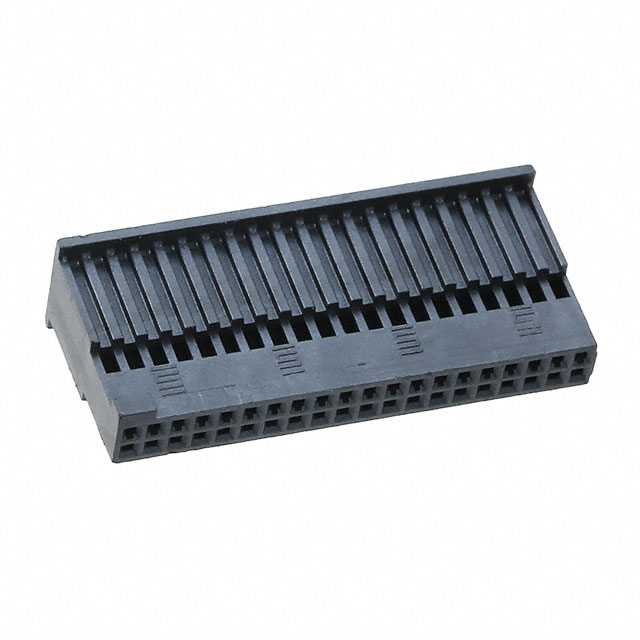

ISDF-20-D

Active

Samtec Inc.

CONN HOUSING RCP 40 POS 1.27MM CRIMP ST CABLE MOUNT BLACK TUBE

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HOUSING RCP 40 POS 1.27MM CRIMP ST CABLE MOUNT BLACK TUBE

Technical Specifications

Parameters and characteristics for this part

Part	Color	Mounting Type	Features	Note	Number of Rows	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Contact Termination	Fastening Type	Insulation Material	Pitch [x]	Pitch [x]	Contact Type	Row Spacing	Row Spacing
Samtec Inc. ISDF-20-D-DS	Black	Free Hanging (In-Line)	Mating Flange	Contacts Not Included	2	40	-55 °C	125 °C	Insulator	Crimp	Latch Lock	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	Female Socket	1.27 mm	0.05 in
Samtec Inc. ISDF-20-S-R	Black	Free Hanging (In-Line)		Contacts Not Included	1	20	-55 °C	125 °C	Insulator	Crimp	Latch Lock	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	Female Socket
Samtec Inc. ISDF-20-D	Black	Free Hanging (In-Line)		Contacts Not Included	2	40	-55 °C	125 °C	Insulator	Crimp	Latch Lock	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	Female Socket	1.27 mm	0.05 in
Samtec Inc. ISDF-20-S-M	Black	Free Hanging (In-Line)	Retention Latches	Contacts Not Included	1	20	-55 °C	125 °C	Insulator	Crimp	Latch Lock	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	Female Socket
Samtec Inc. ISDF-20-D-R	Black	Free Hanging (In-Line)		Contacts Not Included	2	40	-55 °C	125 °C	Insulator	Crimp	Latch Lock	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	Female Socket	1.27 mm	0.05 in
