2-87215-3
ActiveTE Connectivity AMP Connectors

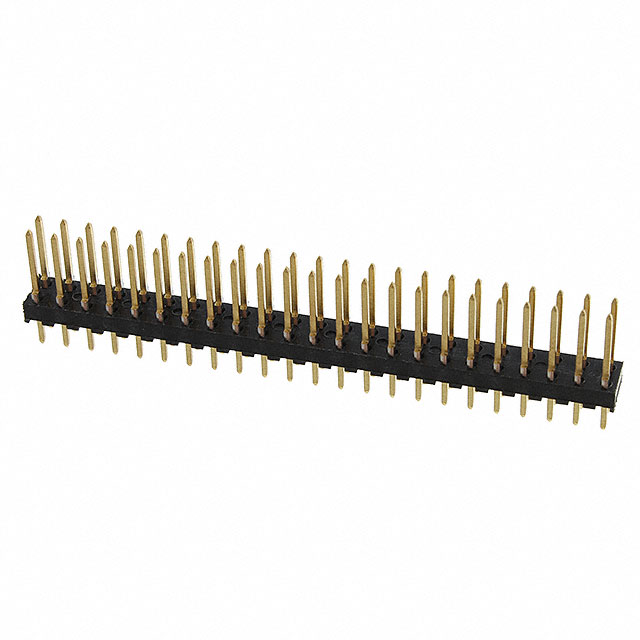

CONN HEADER VERT 46POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2-87215-3
ActiveTE Connectivity AMP Connectors
CONN HEADER VERT 46POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2-87215-3 | 87215 Series |
|---|---|---|
| Connector Type | Header | Header |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish - Post | Gold | Gold |
| Contact Finish Thickness - Mating | 30 Áin | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness - Post | Flash | Flash |
| Contact Length - Mating [x] | 0.318 " | 0.318 " |
| Contact Length - Mating [x] | 8.08 mm | 8.08 mm |
| Contact Length - Post [x] | 3.18 mm | 3.18 mm |
| Contact Length - Post [x] | 0.125 in | 0.125 in |
| Contact Material | Phosphor Bronze | Phosphor Bronze |
| Contact Shape | Square | Circular, Square |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | 3 A | 3 A |
| Fastening Type | Push-Pull | Push-Pull |
| Insulation Color | Black | Black |
| Insulation Height | 0.09 in | 0.09 in |
| Insulation Height | 2.29 mm | 2.29 mm |
| Insulation Material | Thermoplastic | Thermoplastic |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole |
| Number of Positions | 46 | 2 - 80 |
| Number of Positions | - | 16 |
| Number of Positions Loaded | All | All |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Overall Contact Length | 13.55 mm | 13.55 mm |
| Overall Contact Length | 0.533 in | 0.533 in |
| Pitch - Mating | 0.1 in | 0.1 in |
| Pitch - Mating | 2.54 mm | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in | 0.1 in |
| Shrouding | Unshrouded | Unshrouded |
| Style | Board to Board, Cable | Board to Board, Cable |
| Termination | Solder | Solder |
87215 Series
CONN HEADER VERT 18POS 2.54MM
| Part | Insulation Color | Contact Finish - Mating | Insulation Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness - Post | Mounting Type | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Pitch - Mating | Pitch - Mating | Connector Type | Termination | Number of Rows | Style | Contact Finish - Post | Contact Length - Post [x] | Contact Length - Post [x] | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Shape | Insulation Height | Insulation Height | Number of Positions Loaded | Shrouding | Contact Length - Mating [x] | Contact Length - Mating [x] | Number of Positions | Overall Contact Length | Overall Contact Length | Contact Material | Contact Type | Fastening Type | Current Rating (Amps) | Material Flammability Rating | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 87215-6 | Black | Gold | Thermoplastic | -65 ░C | 105 ░C | Flash | Through Hole | 2.54 mm | 0.1 in | 0.1 in | 2.54 mm | Header | Solder | 2 | Board to Board, Cable | Gold | 3.18 mm | 0.125 in | 30 Áin | 0.76 Ám | Circular | 0.09 in | 2.29 mm | All | Unshrouded | 0.318 " | 8.08 mm | 18 | 13.55 mm | 0.533 in | Phosphor Bronze | Male Pin | Push-Pull | 3 A | UL94 V-0 | |
TE Connectivity AMP Connectors 2-87215-6 | Black | Gold | Thermoplastic | -65 ░C | 105 ░C | Flash | Through Hole | 2.54 mm | 0.1 in | 0.1 in | 2.54 mm | Header | Solder | 2 | Board to Board, Cable | Gold | 3.18 mm | 0.125 in | 30 Áin | 0.76 Ám | Circular | 0.09 in | 2.29 mm | All | Unshrouded | 0.318 " | 8.08 mm | 52 | 13.55 mm | 0.533 in | Phosphor Bronze | Male Pin | Push-Pull | 3 A | UL94 V-0 | |
TE Connectivity AMP Connectors 87215-5 | Black | Gold | Thermoplastic | -65 ░C | 105 ░C | Flash | Through Hole | 2.54 mm | 0.1 in | 0.1 in | 2.54 mm | Header | Solder | 2 | Board to Board, Cable | Gold | 3.18 mm | 0.125 in | 30 Áin | 0.76 Ám | Square | 0.09 in | 2.29 mm | All | Unshrouded | 0.318 " | 8.08 mm | 13.55 mm | 0.533 in | Phosphor Bronze | Male Pin | Push-Pull | 3 A | UL94 V-0 | 16 | |
TE Connectivity AMP Connectors 87215-4 | Black | Gold | Thermoplastic | -65 ░C | 105 ░C | Flash | Through Hole | 2.54 mm | 0.1 in | 0.1 in | 2.54 mm | Header | Solder | 2 | Board to Board, Cable | Gold | 3.18 mm | 0.125 in | 30 Áin | 0.76 Ám | Square | 0.09 in | 2.29 mm | All | Unshrouded | 0.318 " | 8.08 mm | 14 | 13.55 mm | 0.533 in | Phosphor Bronze | Male Pin | Push-Pull | 3 A | UL94 V-0 | |
TE Connectivity AMP Connectors 1-87215-0 | Black | Gold | Thermoplastic | -65 ░C | 105 ░C | Flash | Through Hole | 2.54 mm | 0.1 in | Header | Solder | 2 | Board to Board, Cable | Gold | 3.18 mm | 0.125 in | 30 Áin | 0.76 Ám | Circular | 0.09 in | 2.29 mm | All | Unshrouded | 0.318 " | 8.08 mm | 2 | 13.55 mm | 0.533 in | Phosphor Bronze | Male Pin | Push-Pull | 3 A | UL94 V-0 | |||
TE Connectivity AMP Connectors 87215-9 | Black | Gold | Thermoplastic | -65 ░C | 105 ░C | Flash | Through Hole | 2.54 mm | 0.1 in | 0.1 in | 2.54 mm | Header | Solder | 2 | Board to Board, Cable | Gold | 3.18 mm | 0.125 in | 30 Áin | 0.76 Ám | Square | 0.09 in | 2.29 mm | All | Unshrouded | 0.318 " | 8.08 mm | 26 | 13.55 mm | 0.533 in | Phosphor Bronze | Male Pin | Push-Pull | 3 A | UL94 V-0 | |
TE Connectivity AMP Connectors 2-87215-2 | Black | Gold | Thermoplastic | -65 ░C | 105 ░C | Flash | Through Hole | 2.54 mm | 0.1 in | 0.1 in | 2.54 mm | Header | Solder | 2 | Board to Board, Cable | Gold | 3.18 mm | 0.125 in | 30 Áin | 0.76 Ám | Square | 0.09 in | 2.29 mm | All | Unshrouded | 0.318 " | 8.08 mm | 44 | 13.55 mm | 0.533 in | Phosphor Bronze | Male Pin | Push-Pull | 3 A | UL94 V-0 | |
TE Connectivity AMP Connectors 87215-7 | Black | Gold | Thermoplastic | -65 ░C | 105 ░C | Flash | Through Hole | 2.54 mm | 0.1 in | 0.1 in | 2.54 mm | Header | Solder | 2 | Board to Board, Cable | Gold | 3.18 mm | 0.125 in | 30 Áin | 0.76 Ám | Square | 0.09 in | 2.29 mm | All | Unshrouded | 0.318 " | 8.08 mm | 20 | 13.55 mm | 0.533 in | Phosphor Bronze | Male Pin | Push-Pull | 3 A | UL94 V-0 | |
TE Connectivity AMP Connectors 87215-8 | Black | Gold | Thermoplastic | -65 ░C | 105 ░C | Flash | Through Hole | 2.54 mm | 0.1 in | 0.1 in | 2.54 mm | Header | Solder | 2 | Board to Board, Cable | Gold | 3.18 mm | 0.125 in | 30 Áin | 0.76 Ám | Square | 0.09 in | 2.29 mm | All | Unshrouded | 0.318 " | 8.08 mm | 24 | 13.55 mm | 0.533 in | Phosphor Bronze | Male Pin | Push-Pull | 3 A | UL94 V-0 | |
TE Connectivity AMP Connectors 4-87215-0 | Black | Gold | Thermoplastic | -65 ░C | 105 ░C | Flash | Through Hole | 2.54 mm | 0.1 in | 0.1 in | 2.54 mm | Header | Solder | 2 | Board to Board, Cable | Gold | 3.18 mm | 0.125 in | 30 Áin | 0.76 Ám | Circular | 0.09 in | 2.29 mm | All | Unshrouded | 0.318 " | 8.08 mm | 80 | 13.55 mm | 0.533 in | Phosphor Bronze | Male Pin | Push-Pull | 3 A | UL94 V-0 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1000 | $ 10.87 | |
Description
General part information
87215 Series
Connector Header Through Hole 46 position 0.100" (2.54mm)
