SGA12E09-P1J

Obsolete

MEAN WELL USA Inc.

AC/DC WALL MOUNT ADAPTER 9V 12W

Search across all available documentation for this part.

Obsolete

MEAN WELL USA Inc.

AC/DC WALL MOUNT ADAPTER 9V 12W

Technical Specifications

Parameters and characteristics for this part

Specification	SGA12E09-P1J

Applications	ITE (Commercial)
Approval Agency	CE, GS, CB
Cord Length	1.2 m
Cord Length	47.2 in
Current - Output (Max) [Max]	1.33 A
Efficiency	Level VI
Form	Wall Mount (Class II)
Input Connector	CEE 7/16
Input Type	Fixed Blade
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.1 mm
Output Connector [z]	11 mm
Polarization	Positive Center
Power (Watts)	12 W
Region Utilized	Europe
Size / Dimension [x]	62.2 mm
Size / Dimension [x]	2.45 in
Size / Dimension [y]	27.4 mm
Size / Dimension [y]	1.08 in
Size / Dimension [z]	39.7 mm
Size / Dimension [z]	1.56 in
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	9 V

Part	Voltage - Output	Form	Region Utilized	Input Connector	No Load Power Consumption [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Approval Agency	Input Type	Efficiency	Voltage - Input [Min]	Voltage - Input [Max]	Cord Length	Cord Length	Applications	Output Connector	Output Connector [diameter]	Output Connector [z]	Current - Output (Max) [Max]	Polarization	Power (Watts)
MEAN WELL USA Inc. SGA12E09-P1J	9 V	Wall Mount (Class II)	Europe	CEE 7/16	75 mW	-20 C	60 °C	62.2 mm	2.45 in	27.4 mm	1.08 in	39.7 mm	1.56 in	CB CE GS	Fixed Blade	Level VI	90 VAC	264 VAC	1.2 m	47.2 in	ITE (Commercial)	Barrel Plug	2.1 mm 5.5 mm	11 mm	1.33 A	Positive Center	12 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 13.92

General part information

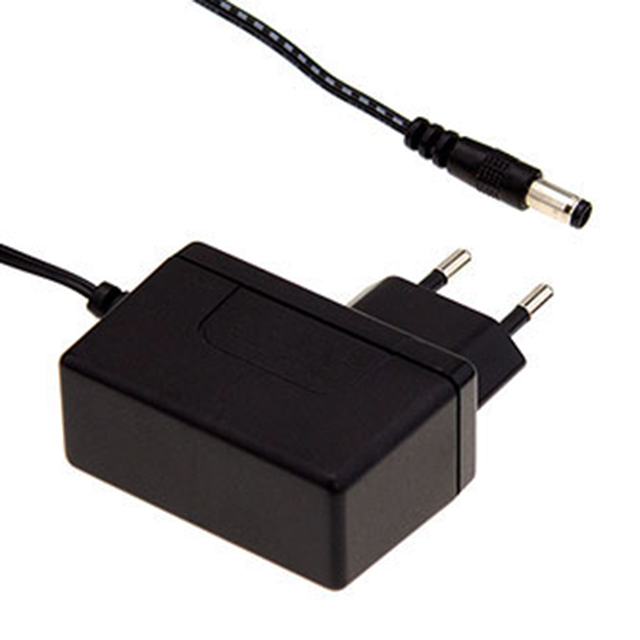

9V 12 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
