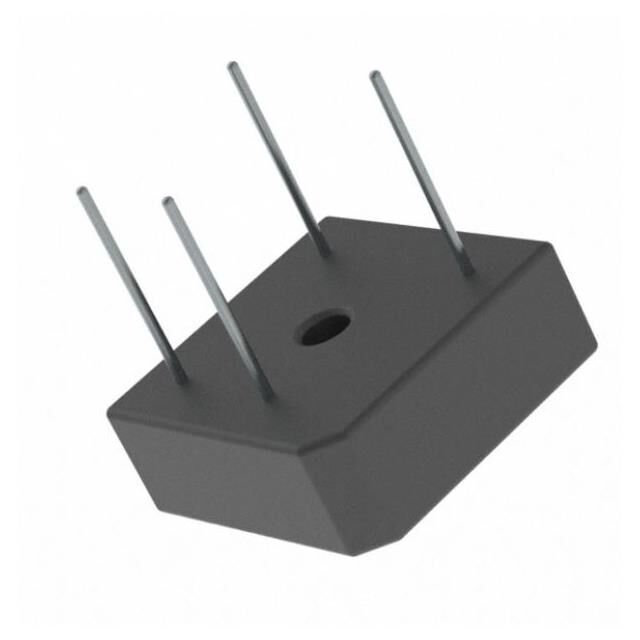

GBPC1501W-G

Active

Comchip Technology

BRIDGE RECT 1P 100V 15A GBPC-W

Search across all available documentation for this part.

Active

Comchip Technology

BRIDGE RECT 1P 100V 15A GBPC-W

Technical Specifications

Parameters and characteristics for this part

Specification	GBPC1501W-G

Current - Average Rectified (Io)	15 A
Current - Reverse Leakage @ Vr	5 µA
Diode Type	Single Phase
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	GBPC-W, 4-Square
Supplier Device Package	GBPC-W
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.1 V
Voltage - Peak Reverse (Max) [Max]	100 V

BRIDGE RECT 1P 100V 15A GBPC-W

Part	Supplier Device Package	Package / Case	Technology	Diode Type	Operating Temperature [Min]	Operating Temperature [Max]	Current - Reverse Leakage @ Vr	Voltage - Forward (Vf) (Max) @ If	Voltage - Peak Reverse (Max) [Max]	Mounting Type	Current - Average Rectified (Io)
Comchip Technology GBPC1501W-G	GBPC-W	4-Square, GBPC-W	Standard	Single Phase	-55 °C	150 °C	5 µA	1.1 V	100 V	Through Hole	15 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bridge Rectifier Single Phase Standard 100 V Through Hole GBPC-W

Technical documentation and resources

No documents available
