TE Connectivity Raychem Cable Protection

ZP HS3 DB 06R REC 030P CT PD

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

ZP HS3 DB 06R REC 030P CT PD

Technical Specifications

Parameters and characteristics for this part

Specification	5120787-1

Connector Type	Receptacle, Female Sockets
Connector Usage	Backplane
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Columns	5
Number of Positions	30
Number of Positions Loaded	All
Number of Rows	6
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-65 ░C
Pitch [x]	0.098 in
Pitch [x]	2.5 mm
Termination	Press-Fit
Voltage Rating	250 VDC

Part	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Termination	Voltage Rating	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Number of Positions	Number of Positions Loaded	Number of Rows	Material Flammability Rating	Pitch [x]	Pitch [x]	Connector Usage	Number of Columns	Connector Style
TE Connectivity Raychem Cable Protection 5120787-1	Through Hole Right Angle	0.76 Ám	30 Áin	Press-Fit	250 VDC	Receptacle Female Sockets	-65 ░C	105 ░C	Gold	30	All	6	UL94 V-0	0.098 in	2.5 mm	Backplane	5
TE Connectivity Raychem Cable Protection 5120753-1	Through Hole	0.76 Ám	30 Áin	Press-Fit	250 VDC	Header Male Pins and Blades	-65 ░C	105 ░C	Gold	100	All	10	UL94 V-0	0.098 in	2.5 mm	Backplane	10
TE Connectivity Raychem Cable Protection 5120755-1	Through Hole	0.76 Ám	30 Áin	Press-Fit	250 VDC	Header Male Pins and Blades	-65 ░C	105 ░C	Gold	50	All	10	UL94 V-0	0.098 in	2.5 mm	Backplane	5	Dual Beam Right Side
TE Connectivity Raychem Cable Protection 5120661-2	Through Hole	0.76 Ám	30 Áin	Press-Fit	250 VDC	Header Male Pins and Blades	-65 ░C	105 ░C	Gold	50	All	10	UL94 V-0	0.098 in	2.5 mm	Backplane	5	Dual Beam Right Side
TE Connectivity Raychem Cable Protection 120729-2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	12600	$ 11.17

General part information

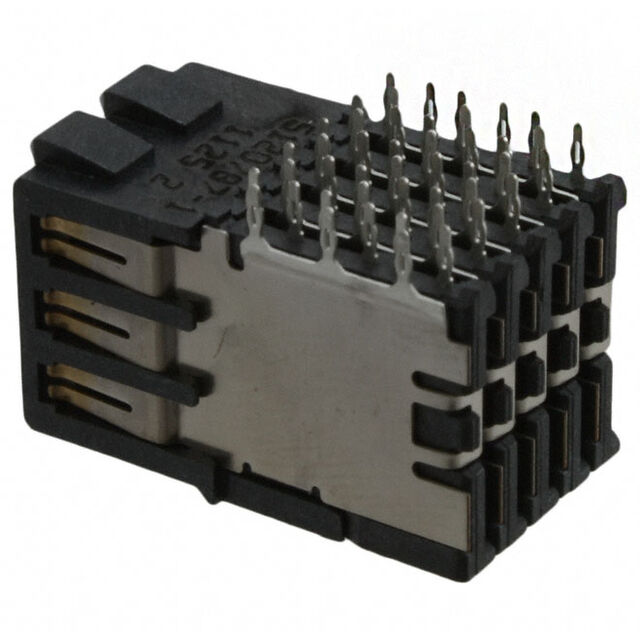

30 Position High Speed Backplane Connector, 6 Row, 5 Column, PCB Mount Receptacle, Right Angle, Unshrouded, 2.5 mm [.098 in] Centerline, Z-PACK HS3
