Technical Specifications
Parameters and characteristics for this part
| Specification | STEVAL-IFP016V2 |
|---|---|
| Embedded | False |
| Function | Transceiver, IO-Link® |
| Primary Attributes | IO-Link Communication Master |
| Secondary Attributes | I2C Interface(s) |
| Supplied Contents | Board(s) |
| Type | Interface |
| Utilized IC / Part | L6360 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
STEVAL-IFP016V2 Series

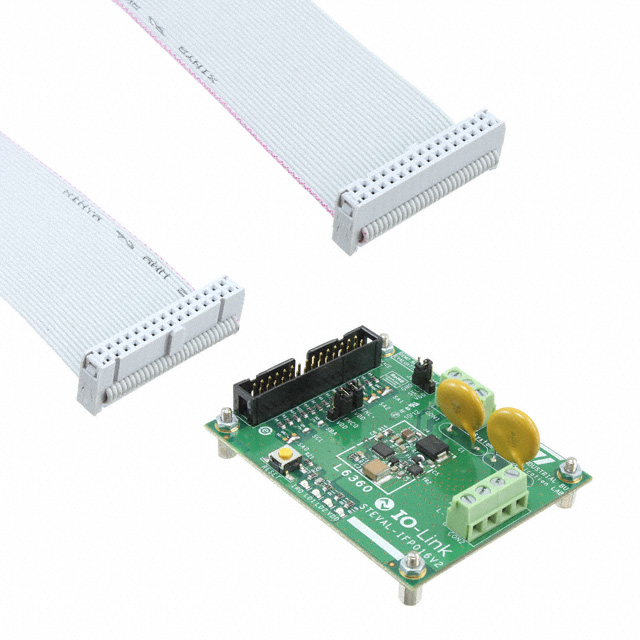

The STEVAL-IFP016V2 IO-Link communication master transceiver demonstration board is based on the L6360, monolithic IO-Link master port. A modular and customizable application that interfaces externally with the microcontroller. The purpose of the board is to demonstrate the capability of the L6360 monolithic IO-Link master, as communication transceiver for multiple I/Os.
The board uses input signal from the microcontroller and outputs the 24 V required for industrial applications.
The board demonstrates that the L6360 is both IO-Link master port mode and standard IO mode compliant.
