M80-4000000F1-06-327-00-000

Active

Harwin Inc.

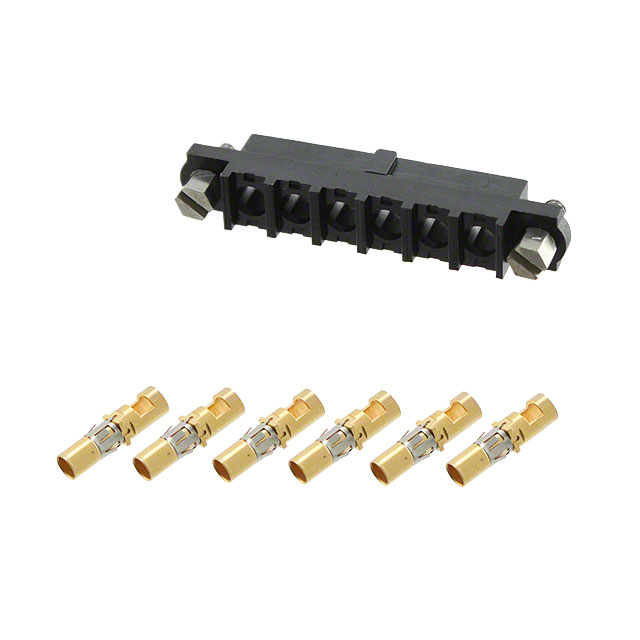

6 POS. FEMALE SIL 16AWG CABLE CONN. KIT, JACKSCREWS ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

6 POS. FEMALE SIL 16AWG CABLE CONN. KIT, JACKSCREWS ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Wire Gauge	Number of Positions	Pitch [x]	Pitch [x]	Features	Contact Finish	Color	Contact Type	Mounting Type	Cable Termination	Wire Type	Connector Type	Number of Rows
Harwin Inc. M80-4000000F1-06-PF5-00-000	10 AWG	6	4 mm	0.157 in	Jackscrews	Gold	Black	Female Socket Power	Free Hanging (In-Line)	Solder	Discrete	Receptacle	1
Harwin Inc. M80-4000000F1-05-305-00-000			4 mm	0.157 in	Jackscrews Polarizing Key	Gold	Black		Free Hanging (In-Line)	Crimp	Coaxial	Receptacle	1
Harwin Inc. M80-4000000F1-10-325-00-000	12 AWG	10	4 mm	0.157 in	Jackscrews	Gold	Black	Female Socket Power	Free Hanging (In-Line)	Solder	Discrete	Receptacle	1
Harwin Inc. M80-4000000F1-06-327-00-000	16 AWG	6	4 mm	0.157 in	Jackscrews	Gold	Black	Female Socket Power	Free Hanging (In-Line)	Solder	Discrete	Receptacle	1
Harwin Inc. M80-4000000F1-08-PF5-00-000	10 AWG	8	4 mm	0.157 in	Jackscrews	Gold	Black	Female Socket Power	Free Hanging (In-Line)	Solder	Discrete	Receptacle	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Rectangular Receptacle Connector Solder Gold 16 AWG

Technical documentation and resources
