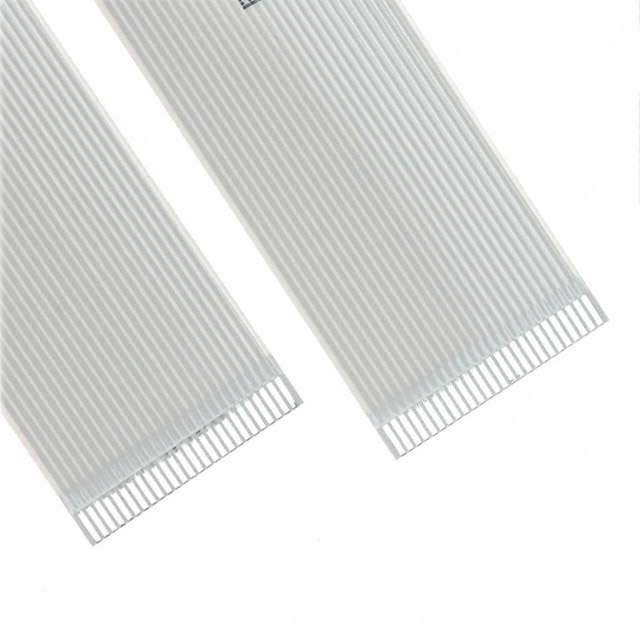

100R26-102B

Active

Parlex USA LLC

CABLE FFC/FPC 26POS 1MM 4"

Search across all available documentation for this part.

Active

Parlex USA LLC

CABLE FFC/FPC 26POS 1MM 4"

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	100R26-102B	100R26 Series

Cable Type	FPC, FFC	FPC, FFC
Length	4 in	3 - 18 in
Length	101.6 mm	76.2 - 457.2 mm
Length	-	1.42 - 12 in
Length	-	36.07 - 203 mm
Length - Exposed Ends [x]	0.14 in	0.14 in
Length - Exposed Ends [x]	3.56 mm	3.56 mm
Number of Conductors	26	26
Pitch [x]	0.039 in	0.039 in
Pitch [x]	1 mm	1 mm
Termination Style	Backers on Both Sides, Top on Both Sides	Backers on Both Sides, Top on Both Sides, Top on One Side, Bottom on Other, Backers on Both Sides

CABLE FFC/FPC 26POS 1MM 5.98"

Part	Number of Conductors	Length - Exposed Ends [x]	Length - Exposed Ends [x]	Pitch [x]	Pitch [x]	Termination Style	Cable Type	Length [x]	Length [x]	Length	Length
Parlex USA LLC 100R26-152B	26	0.14 in	3.56 mm	0.039 in	1 mm	Backers on Both Sides, Top on Both Sides	FFC, FPC	5.984 in	152 mm
Parlex USA LLC 100R26-102B	26	0.14 in	3.56 mm	0.039 in	1 mm	Backers on Both Sides, Top on Both Sides	FFC, FPC			4 in	101.6 mm
Parlex USA LLC 100R26-203B	26	0.14 in	3.56 mm	0.039 in	1 mm	Backers on Both Sides, Top on Both Sides	FFC, FPC	7.992 in	203 mm
Parlex USA LLC 100R26-254B	26	0.14 in	3.56 mm	0.039 in	1 mm	Backers on Both Sides, Top on Both Sides	FFC, FPC	10 in			254 mm
Parlex USA LLC 100R26-76B	26	0.14 in	3.56 mm	0.039 in	1 mm	Backers on Both Sides, Top on Both Sides	FFC, FPC			3 in	76.2 mm
Parlex USA LLC 100R26-305B	26	0.14 in	3.56 mm	0.039 in	1 mm	Backers on Both Sides, Top on Both Sides	FFC, FPC	12 in			304.8 mm
Parlex USA LLC 100R-26-36BO	26	0.14 in	3.56 mm	0.039 in	1 mm	Top on One Side, Bottom on Other, Backers on Both Sides	FFC, FPC	1.42 in	36.07 mm
Parlex USA LLC 100R26-127B	26	0.14 in	3.56 mm	0.039 in	1 mm	Backers on Both Sides, Top on Both Sides	FFC, FPC			5 in	127 mm
Parlex USA LLC 100R26-457B	26	0.14 in	3.56 mm	0.039 in	1 mm	Backers on Both Sides, Top on Both Sides	FFC, FPC			18 "	457.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

26 Position FFC, FPC Cable 0.039" (1.00mm) 4.000" (101.60mm)
