Technical Specifications
Parameters and characteristics for this part
| Specification | H3194-05 |
|---|---|
| Accepts Pin Diameter [Max] | 1.05 mm |
| Accepts Pin Diameter [Max] | 0.041 " |
| Accepts Pin Diameter [Min] | 0.035 " |
| Accepts Pin Diameter [Min] | 0.89 mm |
| Contact Finish | Gold |
| Contact Finish Thickness | 5.9 µin |
| Contact Finish Thickness | 0.15 µm |
| Contact Material | Beryllium Copper |
| Flange Diameter | 3.18 mm |
| Flange Diameter [diameter] | 0.125 in |
| Insertion Force [Max] | 9 N |
| Insertion Force [Min] | 3 N |
| Length - Overall [x] | 0.526 in |
| Length - Overall [x] | 13.35 mm |
| Mounting Hole Diameter [Max] [diameter] | 0.097 in |
| Mounting Hole Diameter [Max] [diameter] | 2.46 mm |
| Mounting Hole Diameter [Min] [diameter] | 0.093 " |
| Mounting Hole Diameter [Min] [diameter] | 2.37 mm |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pin Hole Diameter [diameter] | 0.04 in |
| Pin Hole Diameter [diameter] | 1.02 mm |
| Socket Depth | 4.28 mm |
| Socket Depth | 0.169 in |
| Tail Type | Standard Tail |
| Termination | Solder |
H3194 Series
| Part | Contact Material | Contact Finish | Length - Overall [x] | Length - Overall [x] | Pin Hole Diameter [diameter] | Pin Hole Diameter [diameter] | Insertion Force [Max] | Insertion Force [Min] | Tail Type | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Hole Diameter [Max] [diameter] | Mounting Hole Diameter [Max] [diameter] | Mounting Hole Diameter [Min] [diameter] | Mounting Hole Diameter [Min] [diameter] | Contact Finish Thickness [custom] | Contact Finish Thickness [custom] | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] | Accepts Pin Diameter [Min] | Socket Depth | Socket Depth | Flange Diameter | Flange Diameter [diameter] | Termination | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Harwin Inc. | Beryllium Copper | Tin | 0.526 in | 13.35 mm | 0.04 in | 1.02 mm | 9 N | 3 N | Standard Tail | -55 °C | 125 °C | 0.097 in | 2.46 mm | 0.093 " | 2.37 mm | 4 µm | 157.5 µin | 1.05 mm | 0.041 " | 0.035 " | 0.89 mm | 4.28 mm | 0.169 in | 3.18 mm | 0.125 in | Solder | ||
Harwin Inc. | Beryllium Copper | Gold | 0.526 in | 13.35 mm | 0.04 in | 1.02 mm | 9 N | 3 N | Standard Tail | -55 °C | 125 °C | 0.097 in | 2.46 mm | 0.093 " | 2.37 mm | 1.05 mm | 0.041 " | 0.035 " | 0.89 mm | 4.28 mm | 0.169 in | 3.18 mm | 0.125 in | Solder | 5.9 µin | 0.15 µm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
H3194 Series

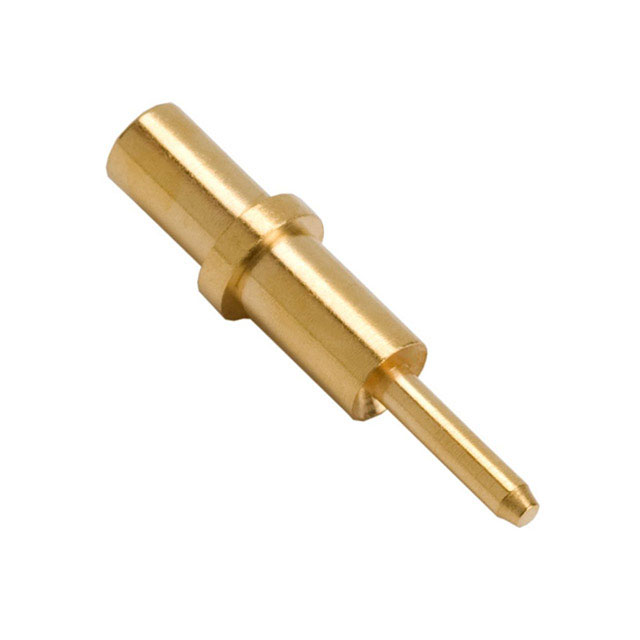

The H3194-05 is a PC Board Socket for mating Ø1mm pin - gold clip tin shell. It has female/socket/jack contact gender, vertical orientation and PC tail/through-board mating pin size. It uses 4-finger beryllium copper contact clip (10-2000Hz vibration, 10G, 6 hours).
