T2070011013-000
ActiveTE Connectivity AMP Connectors
DAM-13
Deep-Dive with AI
Search across all available documentation for this part.
T2070011013-000
ActiveTE Connectivity AMP Connectors
DAM-13
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T2070011013-000 | T207 Series |
|---|---|---|
| Contact Finish | Gold | Gold, Silver |
| Contact Finish Thickness | 0.75 µm | 0.75 - 2 µm |
| Contact Finish Thickness | 29.5 µin | 29.5 - 78.7 µin |
| Contact Termination | Crimp | Crimp |
| Frame Type | - | Docking, Carrier Shell Frame |
| Gender | - | Non-Gendered, Female, Male |
| Includes | - | 1 Frame, 4 Screws |
| Material | - | Polycarbonate (PC), Zinc Alloy, Die Cast |
| Number of Modules | - | 1 - 6 |
| Pin or Socket | Pin | Socket, Pin |
| Size | - | 16 - 24 B |
| Size | - | H16B, 10B, H10A, H24B, 6B, H6B, H10B |
| Wire Gauge [Max] | 26 AWG | 22 - 28 AWG |
| Wire Gauge [Min] | 22 AWG | 20 - 24 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.75 | |
| 10 | $ 1.60 | |||
| 200 | $ 1.43 | |||
| 1000 | $ 1.14 | |||
| 5000 | $ 1.03 | |||
| 10000 | $ 0.98 | |||
T207 Series
H16BP-T4-M DOCKING FRAME_FLOATIN
| Part | Material | Frame Type | Gender | Size | Includes | Number of Modules | Contact Termination | Wire Gauge [Min] | Wire Gauge [Max] | Pin or Socket | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T2071164101-000 | Polycarbonate (PC) | Carrier Shell Frame, Docking | Non-Gendered | 16 B | ||||||||||
TE Connectivity AMP Connectors T2070164201-000 | Zinc Alloy, Die Cast | Carrier Shell Frame, Docking | Female | 16 B | 1 Frame, 4 Screws | |||||||||
TE Connectivity AMP Connectors T2071244101-000 | Polycarbonate (PC) | Carrier Shell Frame, Docking | Male | 6 | ||||||||||
TE Connectivity AMP Connectors T2070012013-001 | Crimp | 22 AWG | 26 AWG | Socket | Gold | 0.75 µm | 29.5 µin | |||||||
TE Connectivity AMP Connectors T2070164001-000 | Zinc Alloy, Die Cast | Carrier Shell Frame, Docking | Female, Male | 1 Frame, 4 Screws | H16B | |||||||||
TE Connectivity AMP Connectors T2070011013-001 | Crimp | 22 AWG | 26 AWG | Pin | Gold | 0.75 µm | 29.5 µin | |||||||
TE Connectivity AMP Connectors T2070002013-000 | Crimp | 22 AWG | 26 AWG | Socket | Silver | 2 µm | 78.7 µin | |||||||
TE Connectivity AMP Connectors T2070001013-000 | Crimp | 22 AWG | 26 AWG | Pin | Silver | 2 µm | 78.7 µin | |||||||
TE Connectivity AMP Connectors T2070104101-000 | Zinc Alloy, Die Cast | Carrier Shell Frame, Docking | Male | 1 Frame, 4 Screws | 10B | |||||||||
TE Connectivity AMP Connectors T2079104201-000 | Zinc Alloy, Die Cast | Carrier Shell Frame, Docking | Female | 1 Frame, 4 Screws | 1 | H10A | ||||||||
TE Connectivity AMP Connectors T2070002033-000 | Crimp | 20 AWG | 22 AWG | Socket | Silver | 2 µm | 78.7 µin | |||||||
TE Connectivity AMP Connectors T2070104201-000 | Zinc Alloy, Die Cast | Carrier Shell Frame, Docking | Female | 1 Frame, 4 Screws | 10B | |||||||||
TE Connectivity AMP Connectors T2070011013-000 | Crimp | 22 AWG | 26 AWG | Pin | Gold | 0.75 µm | 29.5 µin | |||||||
TE Connectivity AMP Connectors T2071064201-000 | Polycarbonate (PC) | Carrier Shell Frame, Docking | Female | 2 | ||||||||||
TE Connectivity AMP Connectors T2071064101-000 | Polycarbonate (PC) | Carrier Shell Frame, Docking | Male | 2 | ||||||||||
TE Connectivity AMP Connectors T2070011008-000 | Crimp | 24 AWG | 28 AWG | Pin | Gold | 0.75 µm | 29.5 µin | |||||||
TE Connectivity AMP Connectors T2070164101-000 | Zinc Alloy, Die Cast | Carrier Shell Frame, Docking | Male | 16 B | 1 Frame, 4 Screws | |||||||||
TE Connectivity AMP Connectors T2070012033-000 | Crimp | 20 AWG | 22 AWG | Socket | Gold | 0.75 µm | 29.5 µin | |||||||
TE Connectivity AMP Connectors T2071104101-000 | Polycarbonate (PC) | Carrier Shell Frame, Docking | Male | |||||||||||
TE Connectivity AMP Connectors T2070244001-000 | Zinc Alloy, Die Cast | Carrier Shell Frame, Docking | Female, Male | 1 Frame, 4 Screws | 6 | H24B | ||||||||
TE Connectivity AMP Connectors T2070064101-000 | Zinc Alloy, Die Cast | Carrier Shell Frame, Docking | Male | 1 Frame, 4 Screws | 2 | 6B | ||||||||
TE Connectivity AMP Connectors T2071244201-000 | Polycarbonate (PC) | Carrier Shell Frame, Docking | Female | 6 | ||||||||||
TE Connectivity AMP Connectors T2070064001-000 | Zinc Alloy, Die Cast | Carrier Shell Frame, Docking | Female, Male | 1 Frame, 4 Screws | 2 | H6B | ||||||||
TE Connectivity AMP Connectors T2070012013-000 | Crimp | 22 AWG | 26 AWG | Socket | Gold | 0.75 µm | 29.5 µin | |||||||
TE Connectivity AMP Connectors T2070011033-000 | Crimp | 20 AWG | 22 AWG | Pin | Gold | 0.75 µm | 29.5 µin | |||||||
TE Connectivity AMP Connectors T2070104001-000 | Zinc Alloy, Die Cast | Carrier Shell Frame, Docking | Female, Male | 1 Frame, 4 Screws | H10B | |||||||||
TE Connectivity AMP Connectors T2070244201-000 | Zinc Alloy, Die Cast | Carrier Shell Frame, Docking | Female | 24 B | 1 Frame, 4 Screws | 6 |
Description
General part information
T207 Series

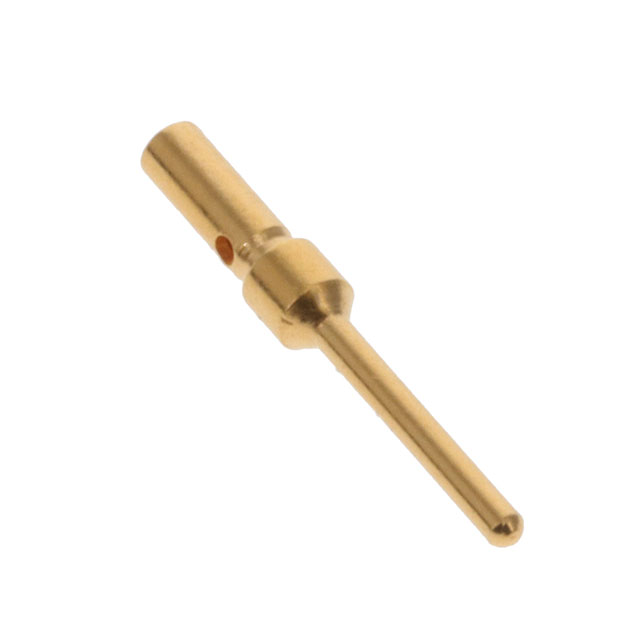

Contact Crimp Pin 22-26 AWG Gold
